GB 60KG Steel Rail Dimension
The GB 60kg steel rail, also known as Chinese standard 60kg rail, conforms to GB (Guobiao) standards for heavy railway applications. The GB 60kg steel rail features a rail height of 176mm, a bottom width of 150mm, a head width of 73mm, and a web thickness of 16.5mm. It has a weight of 60.640kg per meter, making it suitable for heavy-duty railway applications. We provide integrated services for the development, manufacturing, and export of railway rails. As a designated supplier for China Railway Group and China Railway Construction Corporation, we offer both standard and customized rail products. We have long-term partnerships with international companies like A&K, ATT, Vossloh, and UT. Our rails meet BS, UIC, GB, AREMA, and DIN standards, and can be tailored to customer needs. We welcome your inquiries!
GB 60KG Steel Rail Dimension
Size: 60kg
Rail height(mm): 176
Bottom Width(mm): 150
Head Width(mm): 73
Web Thickness(mm): 16.5
Weight(kg/m): 60.640

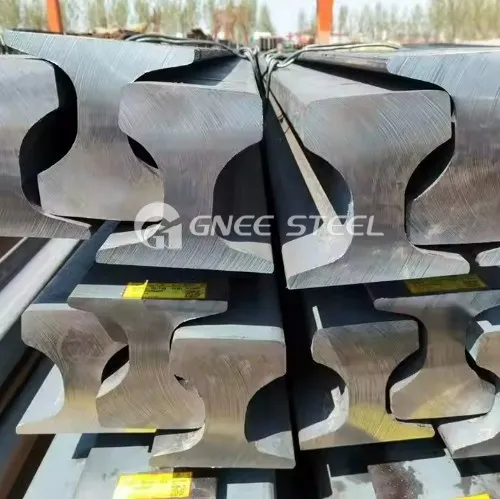

GB 60KG Steel Rail profile
