Products Description
The meaning of QU100 and QU120
The "QU" in QU100 and QU120 represents the steel rail of the crane model ("Q" represents the crane, "U" represents the steel rail profile). The following numbers "100" and "120" respectively represent the weight of the steel rail (in kilograms per meter).
The weight of QU100 steel rail is 100 kilograms per meter.
The weight of QU120 steel rail is 120 kilograms per meter.
Material： U71Mn
Weight：118.10Kg/m
Length：12m
Standard：YB/T5055-2014

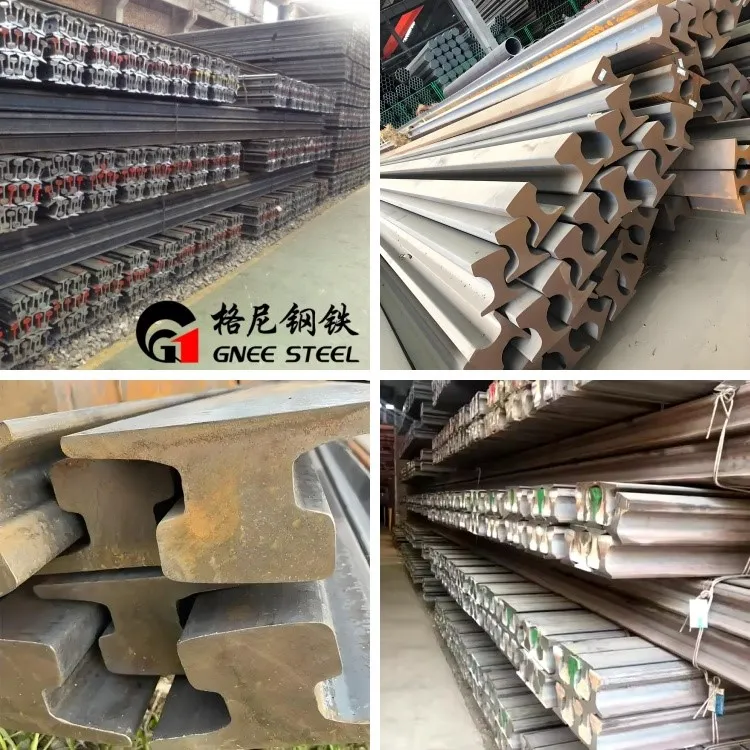

QU100 Crane Rail GB Standard
| type | weight (kg/m) | material | length (m) |
| QU100 | 88.96 | U71Mn | 12 |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 150 | 150 | 100(108) | 38 |
QU120 Crane Rail GB Standard
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| QU120 | 118.10 | U71Mn | 12 |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 170 | 170 | 120(129) | 44 |
Other Features
Application Fields
Crane track system: mainly used for crane tracks in ports, freight stations, container yards and other places. These places usually need to carry high-strength heavy loads, especially when cranes operate under frequent loads.
Crane bridge track: widely used in railway loading and unloading yards, warehouses, factory workshops, etc., cranes operate on these tracks for material handling, stacking, and other operations.
Ports and terminals: In large ports and container yards, steel rails for crane models (such as QU100 and QU120) are used as the operating tracks for cranes to withstand the enormous loads during container loading and unloading.
Crane Rail
| Crane Rail | Size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| QU70 | 120 | 120 | 70(76.5) | 28 | 52.80 | |
| QU80 | 130 | 130 | 80(87) | 32 | 63.69 | |
| QU100 | 150 | 150 | 100(108) | 38 | 88.96 | |
| QU120 | 170 | 170 | 120(129) | 44 | 118.10 |
