↵Rail Anchor Fastening System

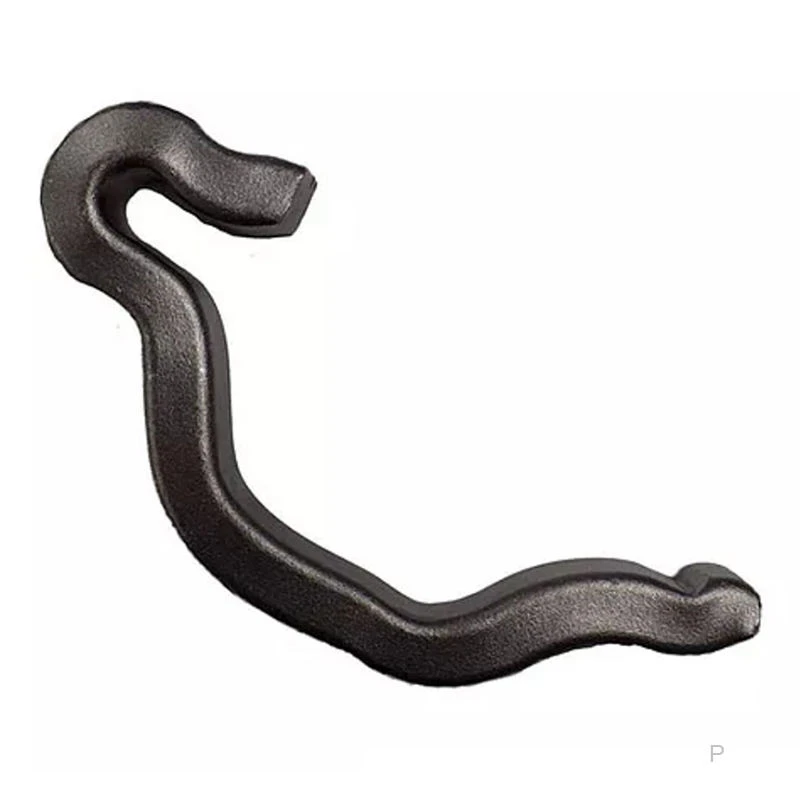

The GNEE Elastic Rail Anchor represents the third-generation evolution in rail restraint systems, engineered to overcome the fundamental limitations of traditional anchors. Unlike rigid or frictional anchors, our patented elastic design provides dynamic, self-adjusting restraint that maintains optimal clamping force across the entire temperature range from -50°C to +70°C. Through intelligent material selection and precision geometry, we've developed a system that eliminates rail "breathing" while preventing excessive stress buildup in continuous welded rail (CWR) tracks.
Technical Specifications:
| Parameter | Specification | Engineering Innovation |
|---|---|---|
| Product Name | Elastic Rail Anchor (Dynamic Restraint System) | Not just an anchor – a complete rail stress management solution |
| Mechanism | Tri-Axial Elastic Deformation with progressive spring characteristics | Maintains 85-95% of initial force throughout full rail expansion/contraction cycle |
| Material Science | Micro-alloyed Spring Steel (54SiCr6) with nanoparticle reinforcement | Fatigue life exceeds 10 million cycles at 25kN dynamic load |
| Surface Technology | Proprietary GNEECoat™ – Gradient composition with ceramic outer layer | 5-layer protection: corrosion resistance, abrasion resistance, UV stability, thermal regulation, friction optimization |
High-Speed Rail Configuration (250-350 km/h)
Force Setting: 25kN optimal balance
Damping Focus: 15-22Hz critical frequencies
Installation Pattern: 1:1 sleeper spacing on tangent, 1:2 on curves
Monitoring: Embedded temperature/RFID for predictive maintenance
Performance: Maintains alignment within ±0.3mm under 350km/h operation
Laboratory Certification Results
- Fatigue Testing: 12.5 million cycles at 30kN dynamic load (250% above requirement)
- Corrosion Resistance: 10,000-hour salt spray with <3% coating degradation
- Temperature Cycling: 500 cycles (-60°C to +80°C) with force stability >90%
- Fire Testing: Maintains function for 120 minutes at 400°C (tunnel safety standard)
- Chemical Resistance: Immersion in pH 2-12 solutions with zero material degradation
Gnee Professional supplier
