Product: Rail Anchor
Material: spring steel, etc.
Standard: Used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 & UIC60 rail, or other types based on customers' needs.
Surface: plain (oiled), zinc painted or or on customers' needs.
Packing: according to customers' requirements
Rail anchor description
A railroad anchor, also known as a rail anchor or tie plate, the anchor is placed on the outer side of the rail and driven into the tie, creating a secure connection, ensuring the safety and durability of railroad tracks. Different types of anchors may be used depending on the specific requirements of the track and the type of rail used in the railway structure.
GNEE rail anchor is carefully selected high-quality materials, ensuring corrosion resistance, wear resistance, and long-lasting durability. ur manufacturing process is closely monitored to meet high standards in every detail. Choose GNEE for a stable guarantee in your railway system.
Types of rail anchors
Rail anchors have different shapes, such as Improved Fair, Unit V or Channeled. We GNEE manufacture diverse rail anchor types to accommodate different rail sections, including 85LB, 90LB, 115RE, 132RE, UIC54, UIC60, 50kg, and more.
Rail anchors specifications
|
Type |
Used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 & UIC60 rail, or other types upon customers' needs. |
||
|
Material |
60Si2MnA |
45# |
QT500-7 |
|
Chemical composition (%) |
C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03
|
C: 0.42-0.50, Mn: 0.50-0.80, Si: 0.17-0.37, Cr: ≤0.25, P: ≤0.035, S: ≤0.035 |
C: 3.60-3.80, Mn: ≤0.6, Si: 2.50-2.90, P: ≤0.08, S: ≤0.025 |
|
Surface |
Plain (oiled), color painting, zinc painted or HDG |
||
|
Standard |
AS1085.10-20002, DIN, ISO-9001 |
||
Rail anchor material specifications
We manufacture types of rail anchors for various rail sizes, including heavy tracks like 50kg, 70lb, 80lb, and 90/91lb. The best option for steel material is 60Si2MnA, due to its stable mechanical properties.
|
Type |
Material |
Weight (g/pc) |
|
50Kg |
60Si2MnA |
800 |
|
70LB |
60Si2MnA |
800 |
|
85LB |
60Si2MnA |
800 |
|
90/91LB |
60Si2MnA |
800 |
Popular rail anchor in Russia
Russia is one of our primary markets. These types of rail anchors are widely used in Russia through casting, featuring the QT400-15 material in accordance with the TOCT 7293-85 standard. We take pride in contributing reliable and effective solutions to meet the demands of the Russian railway industry.
Rail Anchor Production Process
Rail anchor production process from the GNEE factory including following steps: Raw material ➔ Molding ➔ Heat Treatment ➔ Machining ➔ Surface Coating ➔ Quality Control ➔ Packaging
Rail Anchor Application Guidelines

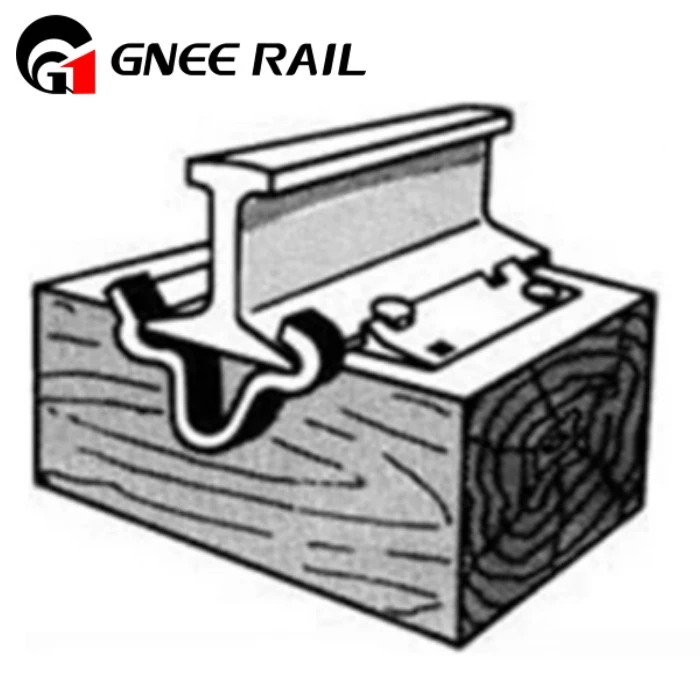

1. Rail anchors should be positioned on the gage side of the rail base, against the same tie face on opposite rails.
2. Ensure that rail anchors securely and firmly hold the rail base, providing full bearing against the rail tie face.
3. When the bearing of the rail anchor against the tie has been disturbed, use a new rail anchor and rail tie.
4. Avoid moving anchors by driving them along the rail.
5. Keep the rail ties straightened during the application of anchors.
GNEE, professional railway shoulder manufacturer
