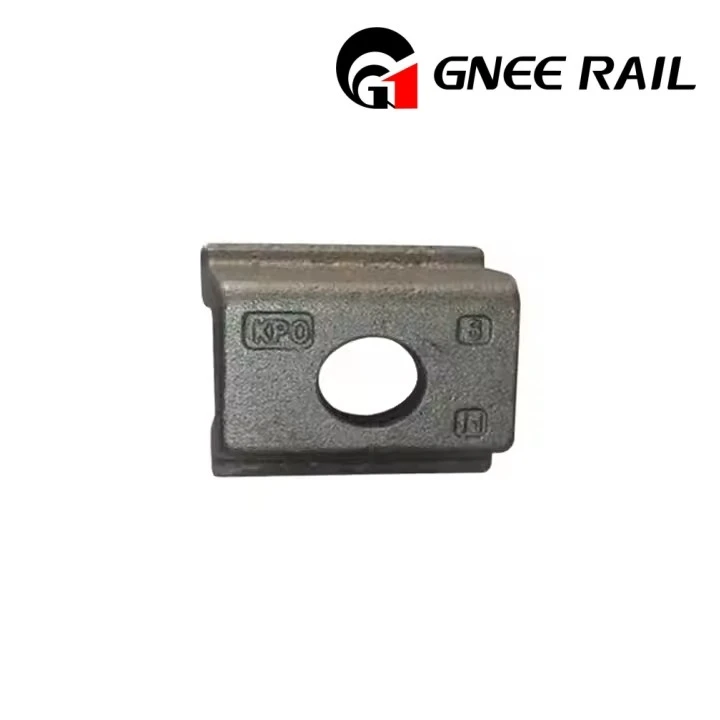

KPO5 Rail Clamp



A KPO5 rail clamp, often referred to as an elastic rail clip or KPO clip, is used to maintain the lateral position of rails, especially crane rails. It ensures mechanical stability while allowing longitudinal movement through its elastic design, and it is typically anchored to rail ties with bolts. GNEE Rail is a professional and reliable supplier of rail clips, manufacturing all types of rail clamps, rail clips, and other railway fasteners such as rail spikes, rail fish plates, rail bolts, tie plates, crane rail clips, steel rails, and more. All products are made to comply with international standards. If you have any inquiries, feel free to contact us at any time.

KPO Rail Clamp

KPO5 Rail Clamp material specification



Name Rail clamp Rail clamp Rail clamp
Material Q235-forging ZG35-cast steel QT500-7-cast iron
Chemical composition(%) C:0.12-0.20, Mn:0.30-0.70, Si:≤0.3, P:≤0.045, S:≤0.045 C: ≤0.4, Mn:≤0.9, Si: ≤0.5, P:≤0.04, S:≤0.04 C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025



KPO5 Clamp Rail Fastening System Components



Part name

Type

Material

Finish

Remark

KPO clip

KPO3, KPO6, KPO9

Q235

Plain oiled

Standard: DIN5906

HS bolt

HS26, HS32

Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2

Hex nut

As ordered

Grade 5: 35#
Grade 8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN985

Double coil spring washer

As ordered

65Mn

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: UIC864-3

screw spike

M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.

Standard: ISO898-1, UIC864-1 and NF F500-50

Base plate

UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size

Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel

Plain oiled

Standard: UIC864-6
