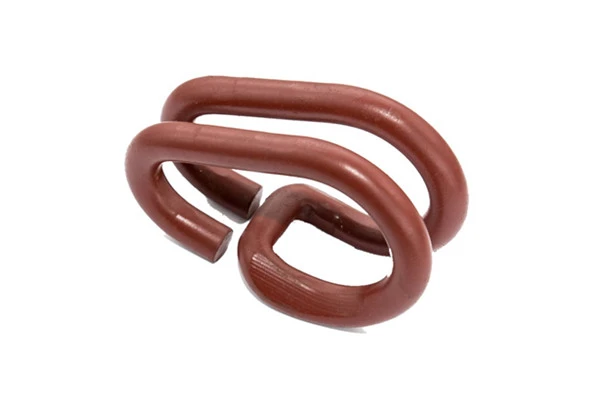

Rail Fastener Elastic Clips Deebik

Rail Fastener Elastic Clips Deebik

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.
Send Inquiry
Chat Now
Description
Technical Parameters

Core Technical Parameters & Material Performance

Model No. Wire Diameter (mm) Material Grade Hardness (HRC) Surface Treatment Compliance Standards
D10-13 13 ± 0.10 60Si2MnA 44-48 Hot-dip galvanized EN 13481-2, DIN 17221
D12-14 14 ± 0.15 60Si2CrA 44-48 Zinc-plated AREMA, BS 970
D15-13 13 ± 0.10 38Si7 42-47 Dacromet GB/T 1222, EN 13481-2
D18-15 15 ± 0.15 60Si2Mn 44-48 Black oxide UIC 515-4, DIN 17221
D20-14 14 ± 0.15 55Si2Mn 42-47 Passivated AREMA, ISO 9001

Rail Fastener Elastic Clips Deebik

Application Scenarios & Practical Operation Specifications

Model No. Applicable Rail Type Sleeper Material Installation Tool Installation Gap (mm) Core Application Scenarios
D10-13 UIC 54, 50 kg/m Concrete Special clamping pliers 7-8 Conventional mainline railways
D12-14 UIC 60, 60 kg/m Concrete, Steel Hydraulic tool 8-9 High-speed & heavy-haul lines
D15-13 Light rail, 40 kg/m Concrete, Composite Manual pliers 6-7 Urban transit systems
D20-14 UIC 54/60, 50-60 kg/m Concrete Hydraulic clamping tool 8-9 Electrified ballasted tracks
