Name: China E Clip Elastic Crane Rail Clips Manufacturers Suppliers Factory - Customized Service - GNEE RAIL
Brand: GNEE
SKU: 280471730

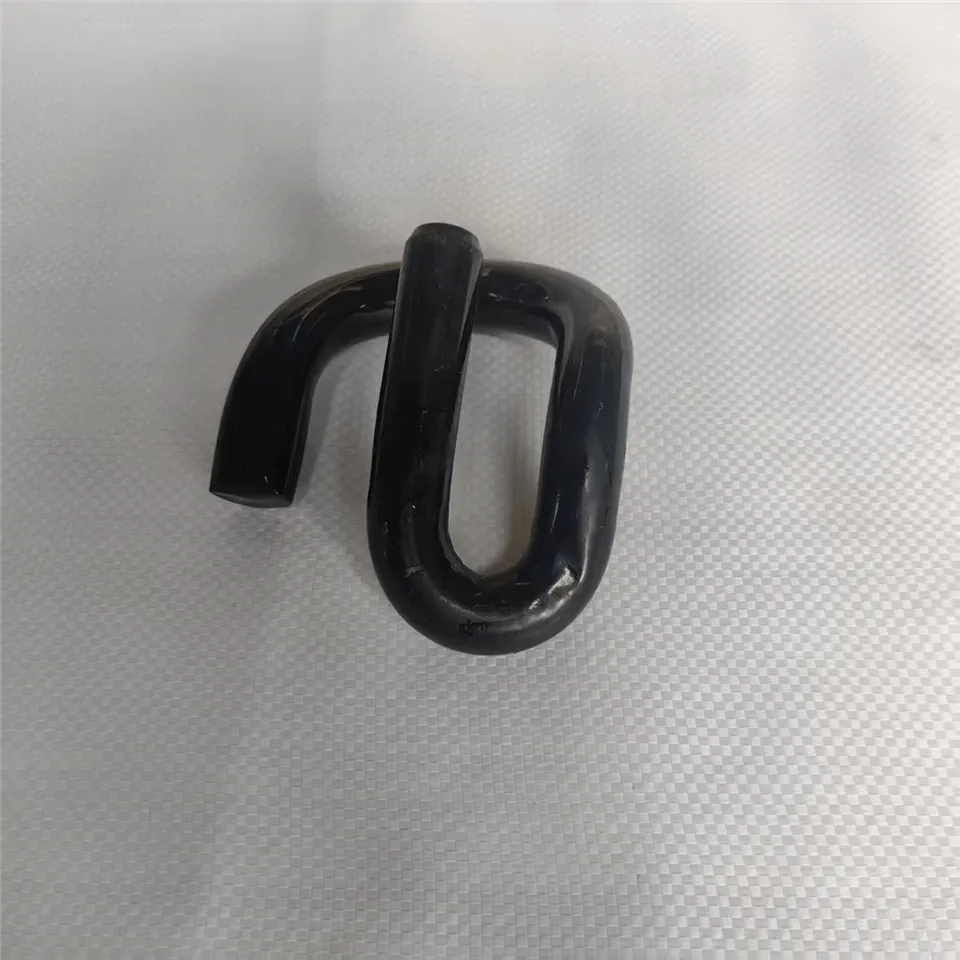

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Railway E-Clips

Parameter	Light Rail E-Clip	Heavy-Haul Railway E-Clip	High-Speed Railway E-Clip
Model/Type	E10	E20	E18
Applicable Rail Section	30kg/m, 43kg/m	60kg/m, 75kg/m	60kg/m (High-Speed Rail)
Material	60Si2MnA Spring Steel	55SiMnVB Spring Steel	60Si2CrVA Alloy Spring Steel
Heat Treatment	Quenching + Tempering	Quenching + Tempering	Quenching + Tempering (Precision)
Hardness (Rockwell)	HRC 42-48	HRC 45-50	HRC 46-52
Tensile Strength	≥1275MPa	≥1470MPa	≥1665MPa

E Clip Elastic Crane Rail Clips

Advantages&Main Applications

- Excellent Holding Power: Reliable performance under high axial loads.
- Vibration Damping: Reduces maintenance needs on track and ballast.
- Long Service Life: High resistance to fatigue and wear.
- Simple Installation/Removal: Can be installed and removed with specialized tools without dismantling the entire assembly.

- Heavy-Haul Railways
- Conventional Passenger Lines
- Metros & Light Rail Transit (LRT)
- Railway Sidings and Yards
