Rail e CLIP Fastening System

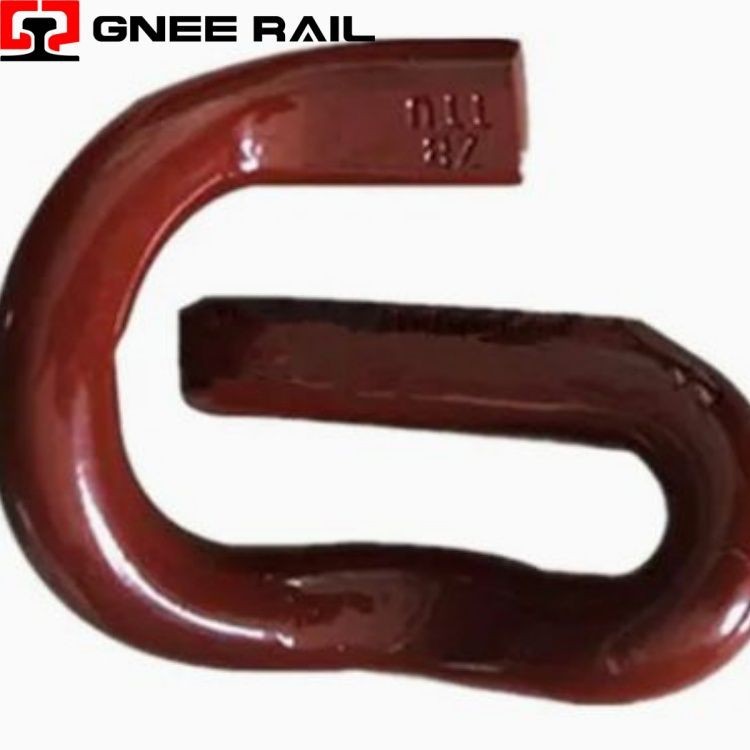

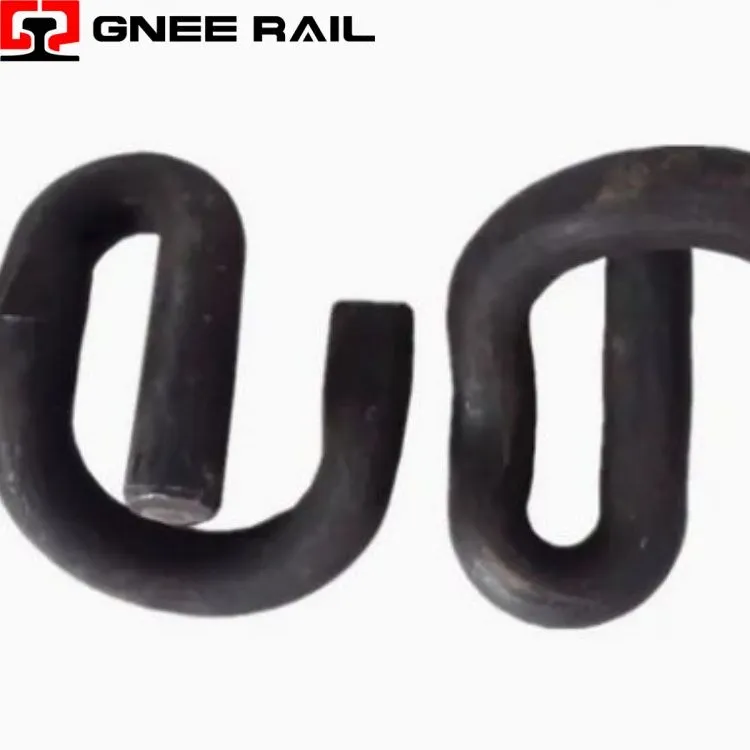

The Railway E-Clip is a resilient track fastening component engineered from high-grade spring steel, designed to lock the rail to the sleeper through elastic preload. Its iconic "E" configuration generates multidirectional restraint-vertical, lateral, and longitudinal-while allowing controlled deflection that absorbs passing train energy and returns it to maintain continuous clamping force without mechanical wear.
Technical Specifications:
| Design Feature | Engineering Function | Operational Benefit |
|---|---|---|
| Curved spring profile | Stores energy during deflection | Self-adjusting clamp force |
| Three contact points | Balances rail seating | Prevents rocking and rolling |
| Constant cross-section | Uniform stress distribution | Extended fatigue life |
| Controlled toe load | Predictable clamping pressure | Standardized track resistance |
| Corrosion-resistant finish | Protects against oxidation | 50-year service potential |
| Visual seating indicator | Confirms correct installation | Zero-measurement inspection |
Installation & Maintenance Perspective:
- Creates three-point contact with rail foot for balanced load transfer.
- Generates progressive clamping force that increases with train load.
- Distributes dynamic stresses across wider sleeper bearing area.
- Precludes localized fatigue through gradual stress gradients.
- Maintains elastic response across entire load spectrum from light rail to heavy haul.
Maintenance & Operational Perspective
- Functions reliably in extreme climates from Arctic cold to desert heat.
- Resists corrosion from de-icing salts, sea spray, and industrial chemicals.
- Accommodates rail expansion and contraction without force loss.
- Performs effectively in tunnels, bridges, and ballastless track systems.
- Maintains electrical insulation properties when used with composite insulators.
