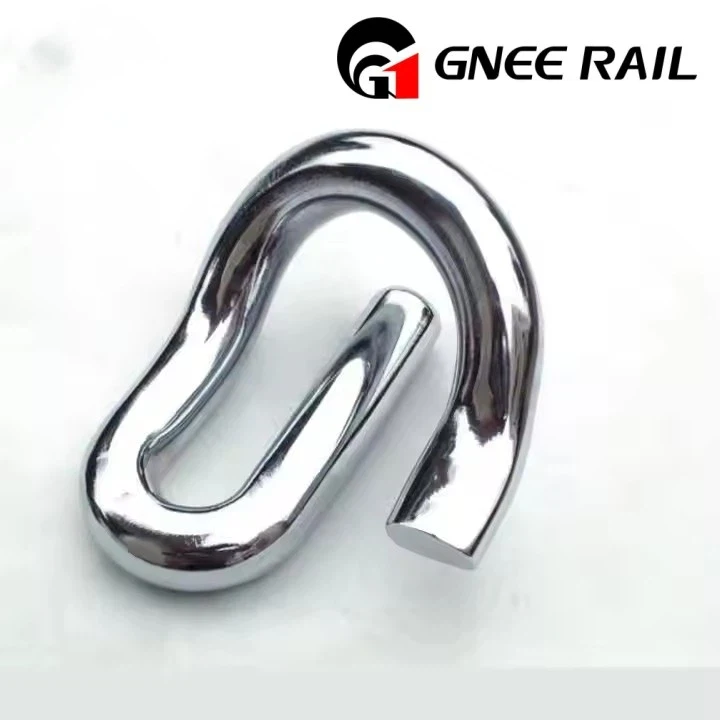

E Type Rail Elastic Railway Fastening

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Railway E Clips - Supply Chain & Commercial Profile

Attribute	Tier 1 Supplier Grade	Aftermarket/Generic Grade	Project-Specific Custom
Certification	IRIS/ISO 22163, EN 15085-2	ISO 9001 only	Client-approved qualification
Lead Time	12-16 weeks (scheduled production)	4-6 weeks (stock-based)	18-24 weeks (incl. tooling)
Packaging	Sealed anti-rust paper + wooden crate	Plastic bag + carton box	According to client's ESD spec
Order MOQ	5,000 pieces per size	500 pieces per size	20,000 pieces (minimum)
Pricing Basis	Annual frame agreement	Ex-works spot price	Turnkey project quotation
Documentation	Full kit (3.2 MTC, FAI, COC PPAP)	Commercial invoice + test report	As per project ITP
Warranty	3 years on material & workmanship	1 year general warranty	Aligned with rail system warranty

E Type Rail Elastic Railway Fastening

Railway E Clips - Installation & Maintenance Specifications

Technical Focus	Parameter	Tool Requirement	Field Check Method	Acceptance Criteria
Pre-Installation	Storage temperature	Climate-controlled warehouse	Thermometer record	10°C to 40°C
Installation	Sequential torque pattern	Hydraulic torque wrench	Pattern verification	Cross-tightening as per manual
Gap Control	Rail-foot to shoulder gap	Feeler gauge set	4-point measurement	0.1-0.5 mm (vertical)
Tension Check	Residual clamping force	Strain gauge transducer	Annual calibration check	≥85% of initial design force
Corrosion Monitoring	Coating integrity	Digital microscope	Biannual field sampling	No red rust (ISO 4628)
Replacement Trigger	Permanent deformation	Profile template gauge	Routine inspection	Leg height reduction >2mm
Retorquing Cycle	Maintenance interval	Manual torque wrench	Maintenance log	After 1st 6 months, then yearly

gnee-professional supplier

E Type Rail Elastic Railway Fastening
