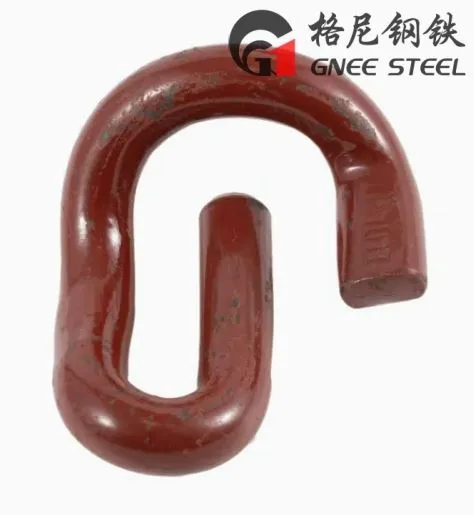

Elastic Rail Clip E3
The Elastic Rail Clip E3 (also known as E3 Rail Clip or E3 Track Fastener) is a high-strength fastening component designed to securely attach rails to railway ties. As an experienced rail fastener supplier, GNEE Rail provides a full range of high-quality products, including rail spikes, fishplates, rail clips, and steel rails. Our products adhere to international standards to ensure top-notch quality. The PR series rail clips-PR85, PR309, PR401, PR415, PR601-are designed to offer excellent performance for a variety of track systems. We can also customize products to meet your exact requirements. Contact us for more information on our solutions.
Elastic Rail Clip E3 specification
Item No: E3
Material: 60Si2Mn
Diameter: ø18
Clip length:
Clip width:
Weight: 0.8
HRC: 44-48
Pressure: ≥9.5KN
Fatigue Test: 5,000,000 times without break
Countries: China
Elastic Rail Clip E3 technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test | Countries |
| E1,E2,E3 | 60Si2Mn | ø18 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | China | ||
| E1609 | 60Si2Mn | ø18 | 93±3 | 0.43 | 44-48 | ≥9.5KN | 5000000 times without break | Southeast Asia | |
| E1809 | 60Si2Mn | ø18 | 104±3 | 0.62 | 44-48 | ≥9.5KN | 5000000 times without break | UK,European | |
| E1817 | 60Si2Mn | ø18 | 104±3 | 37.5±3.0 | 0.62 | 44-48 | ≥9.5KN | 5000000 times without break | |
| E2001 | 60Si2Mn | ø18 | 0.6 | 44-48 | ≥9.5KN | 5000000 times without break | africa | ||
| E2007 | 60Si2Mn | ø18 | 105±5 | 38max | 0.62 | 44-48 | ≥9.5KN | 5000000 times without break | Korea |
| E2009 | 60Si2Mn | ø18 | 106±3 | 37.5 | 0.65 | 44-48 | ≥9.5KN | 5000000 times without break | Brazil,America |
Elastic Rail Clip E3 workshop
Elastic Rail Clip E3 quality control
