Rail E CLIP Fastening System

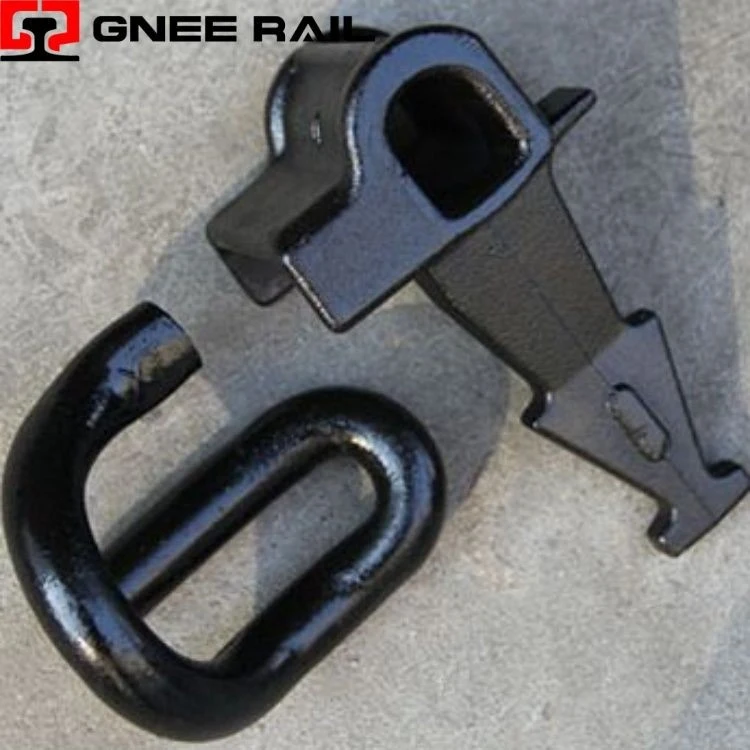

The Railway E-Clip is a resilient steel fastening component engineered to secure rails to sleepers through elastic deformation, distinguished by its characteristic "E" profile that creates a multi-stage spring mechanism. Fabricated from high-grade spring steel alloys including 51CrV4 and Ck67 (DIN 17222), these clips function through controlled deflection of their curved arms, generating precise clamping forces that maintain rail position while absorbing dynamic wheel loads.
Technical Specifications:
| Coating Type | Application Method | Thickness | Corrosion Resistance (ASTM B117) | Temperature Range | Best Suited Environment |
|---|---|---|---|---|---|
| Black Oxide | Hot Alkaline Bath | 1–3 µm | 24–48 Hours | -20°C to +60°C | Indoor/Dry Climates |
| Mechanical Zinc | Tumble Plating | 5–12 µm | 200–300 Hours | -30°C to +70°C | General Purpose |
| Dacromet 320 | Dip-Spin Coating | 6–10 µm | 500–700 Hours | -40°C to +80°C | Coastal/Marine |
| Zinc-Nickel (ZnNi) | Electroplating | 8–15 µm | 800–1,000 Hours | -40°C to +80°C | Offshore/Tunnels |
| Hot-Dip Galvanizing | Immersion Coating | 40–60 µm | 1,500+ Hours | -40°C to +80°C | Desert/Extreme Exposure |
| Geomet 500 | Dip-Spin (Cr-Free) | 6–12 µm | 600–800 Hours | -40°C to +80°C | Environmental Regulations |
Installation & Maintenance Perspective:
- Elastic Hysteresis Behavior: The clip material exhibits controlled energy loss during deflection cycles, converting kinetic energy into minimal heat rather than transmitting it to sleepers.
- Multi-Stage Spring Rate: The "E" geometry creates progressive stiffness-initial deflection requires lower force for vibration absorption, while deeper deflection engages higher resistance for overload protection.
- Recovery Precision: After load removal, the clip returns to its original position with minimal permanent set (<0.2mm after 1 million cycles), ensuring consistent clamping over decades.
Maintenance & Operational Perspective
- Visual Inspection Protocols: Track walkers identify missing or damaged clips through distinctive silhouette recognition, with missing clips creating visible gaps in the rail seat area.
- Deflection Measurement: Service wear is assessed by measuring the gap between clip leg and rail foot-reduced gaps indicate plastic deformation requiring replacement.
- Tap Testing Acoustics: Experienced track workers tap clips with hammers; ringing tones indicate proper tension while dull sounds suggest loose or cracked components.
