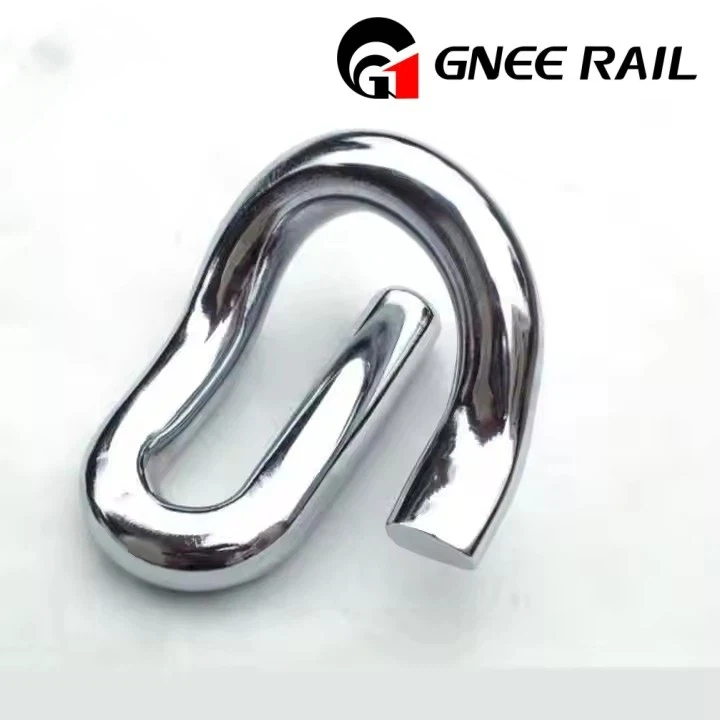

Nail Railway Track E Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail E Clip Fastening System

A Railway E-Clip is a type of elastic rail fastening clip characterized by its distinct, symmetrical three-point contact shape resembling the letter "E" or an open "C", engineered to provide consistent clamping force through controlled spring action.

It functions by being installed horizontally onto a pre-assembled shoulder or anchor point cast into concrete sleepers, where its legs exert a downward and inward force on the rail foot to secure it.

The clip's design allows for significant vertical and lateral elasticity, accommodating rail movement from thermal expansion and dynamic loads while maintaining constant toe load.

Technical Specifications:

Model / Standard Reference	Stiffness Category	Nominal Toe Load (kN)	Primary Steel Grade	Typical Application Context
EN 13481 E-Clip Type A	Standard Elasticity	9 - 11	60Si2MnA	Mixed-traffic main lines
ISO 22056 Type E1	High Elasticity	7 - 9	55Cr3	Urban transit, noise reduction
IRS T-39 Type E-Clip	Medium Stiffness	10 - 12	SUP11	Indian Railways broad gauge
JIS E1102 E-Type Clip	Variable Stiffness	8 - 13	SWRS82B	Japanese Shinkansen & conventional
Heavy Haul E-Clip (Proprietary)	Very High Stiffness	13 - 15	60Si2CrVA	Mining and dedicated freight corridors

Functional & Engineering Perspective

Mainline passenger and freight networks with concrete sleeper track where high traffic volume and varied speeds require a reliable, maintenance-efficient fastening solution.

Mass Rapid Transit (MRT) and metro systems where the E-Clip's predictable elastic behavior helps manage frequent acceleration and braking forces while dampening vibration for noise-sensitive urban areas.

Modular slab track construction on high-speed lines and in tunnels, where E-Clips are installed in factory-assembled track panels for rapid on-site deployment and precise gauge control.

Maintenance & Operational Perspective

Post-installation bedding-in check is performed after the passage of 50,000 to 100,000 gross tons of traffic to ensure clips have properly seated and initial tension is stable.
Systematic clip rotation programs may be implemented every 8-12 years in high-load areas, where clips are removed, inspected, and reinstalled (or replaced) to redistribute stress and extend service life.
Condition monitoring via track recording cars regularly measures track geometry; developing irregularities can indicate specific fastening failures, prompting targeted clip inspections.
