Rail e Clip Fastening System

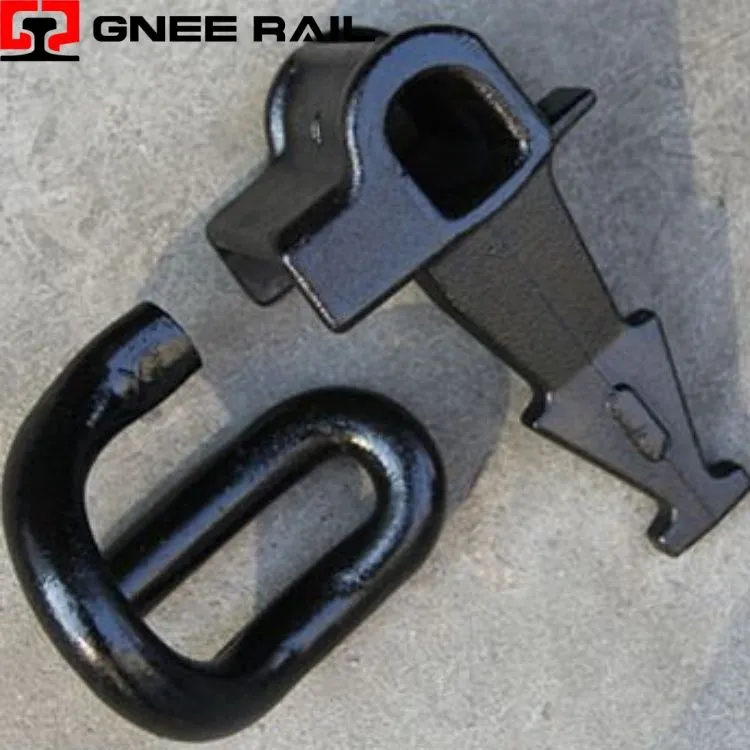

Railway E Clips are resilient fasteners forged from spring steel rod into a three-legged E-shaped profile, designed to secure rails within cast-in shoulders through elastic deformation. These clips generate sustained clamping force by deflecting during installation, absorbing dynamic loads from passing trains while maintaining consistent toe pressure. The closed-loop geometry ensures uniform stress distribution across all legs, preventing localized fatigue.
Technical Specifications:
| Parameter | Light Rail | Mainline | High-Speed |
|---|---|---|---|
| Clip Height | 38-42 mm | 44-48 mm | 48-52 mm |
| Installation Force | 1.2-1.8 kN | 1.8-2.4 kN | 2.4-3.0 kN |
| Working Range | 6-8 mm | 8-10 mm | 10-12 mm |
| Fatigue Rating | 3M cycles | 5M cycles | 7M cycles |
| Coating Type | Zinc plated | Dacromet | HDG |
| Track Type | Tram/Metro | Mixed traffic | Dedicated passenger |
Installation & Maintenance Perspective:
- Manufactured from high-carbon spring steel alloys
- Quenched and tempered to achieve optimal hardness-toughness balance
- Shot peening introduces compressive residual stress at surface
- Microstructure refined through controlled heat treatment
- Inclusion cleanliness controlled to prevent premature failure
Maintenance & Operational Perspective
- Fatigue tested to minimum 5 million cycles without fracture
- Load-deflection curve verified against design specifications
- Salt spray testing validates corrosion protection coatings
- Dimensional accuracy confirmed through gauge verification
- Destructive testing validates ultimate strength margins
