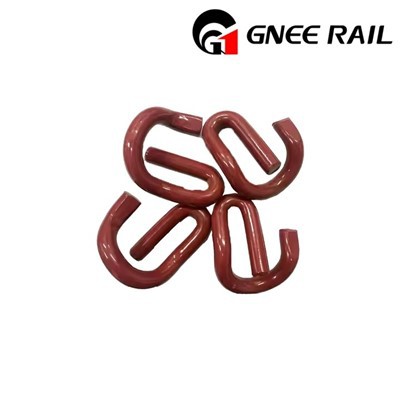

Rail Clips E2056
The E2056 rail clip is a durable elastic fastening system designed for heavy-duty rail applications. It is made from high-quality spring steel, it provides exceptional resistance to fatigue, corrosion, and mechanical stress, ensuring long-lasting track stability. As a top manufacturer and supplier of railway fastening systems, GNEE Rail provides a diverse selection of rail clips, including the popular clip I, clip II, and clip III, as well as E-type clips, SKL rail clips, high-speed railway clips, and Russian rail clips. Certified by ISO9001-2008 and SGS, and approved by China's Railway Ministry, GNEE Rail is committed to producing elastic rail clips of the highest quality. Utilizing premium spring steel and advanced processing techniques, the clips offer superior tensile strength and corrosion resistance, making them reliable under extreme stress. The company's production base enables an annual capacity of up to 5 million pieces.
Rail Clips E2056 specification
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test | Countries |
| E2056 | 60Si2Mn | ø20 | 106±3 | 56.6±3.0 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | Africa,EU,America,brazil |
Rail Clips E2056 technical parameters
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 | |||||
| Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | |||
| PR rail clip | PR309 | 44-48HRC | |||
| PR401 | |||||
| PR601 | |||||
| PR85 | |||||
| We can also manufacture customized rail clips following your drawings or samples! | |||||
