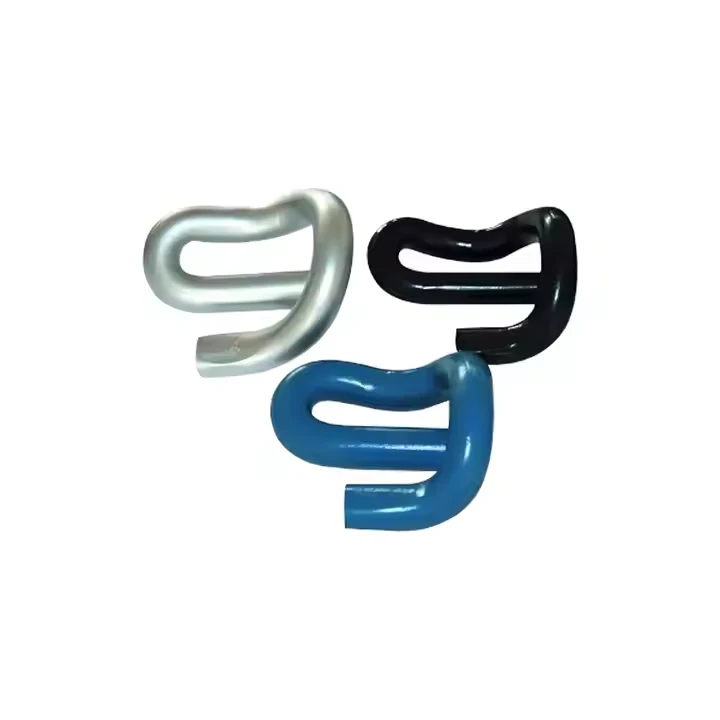

Railway E20 Rail Clips

Railway E20 Rail Clips

The buckling parts of elastic fasteners are mainly spring bars, which generate buckling pressure on the track through bending and twisting deformation of the spring bars, effectively ensuring the reliable connection between the rails for a long time, maintaining the integrity of the track as much as possible, and preventing the rails from moving longitudinally and transversely relative to the sleepers.
Send Inquiry
Chat Now
Description
Technical Parameters

Railway Elastic Clip E-Series Technical Parameters

Model Standard Length (mm) Material Clamping Force (kN) Fastener Type
E12 GB/T 28268-2012 120 60Si2MnA 8~10 Light-duty fasteners
E15 GB/T 28268-2012 150 60Si2MnA 10~12 WJ-7, Type V clips
E18 GB/T 28268-2012 180 60Si2MnA 12~15 WJ-8, Type VII clips
E20 GB/T 28268-2012 200 60Si2MnA 15~18 WJ-7/WJ-8
E22 TB/T 3395-2015 220 60Si2MnA 18~22 Heavy-duty fasteners

Railway E20 Rail Clips

Application of rail clips

Railway E20 Rail ClipsRailway E20 Rail Clips

Gnee-professional supplier

Railway E20 Rail Clips

Railway E20 Rail Clips
