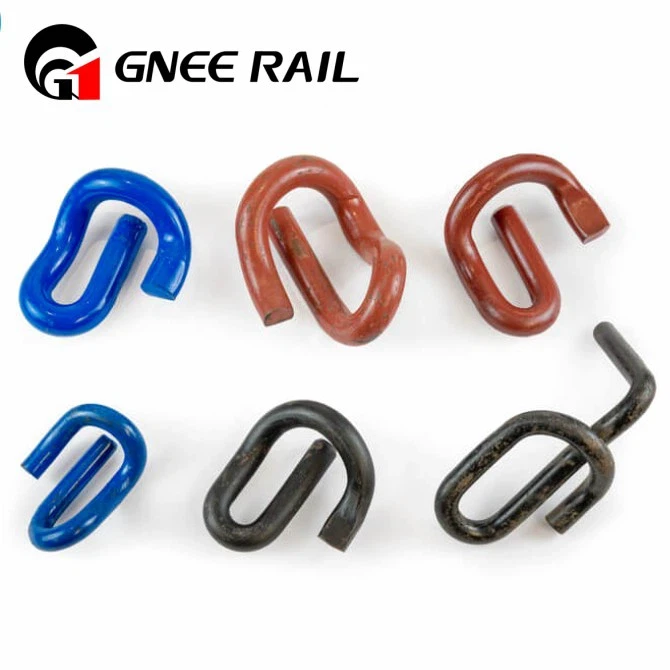

Steel Alloy Railway Track E Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Non-Destructive Testing (NDT) Standards & Defect Criteria

Model No.	NDT Methods Required	Detection Focus	Defect Acceptance Threshold	Qualification Criteria	Testing Frequency (Cycles)	Inspection Equipment	Compliance Standard
E1609	Magnetic Particle Testing (MT)	Surface Cracks	Crack Length ≤0.5mm; No Through-Cracks	No fracture after 2M cycles; Residual Deformation ≤1.5mm	2,000,000	MT Flaw Detector	GB/T 24795, EN 13146
E1809	Ultrasonic Testing (UT) + MT	Internal Inclusions + Surface Defects	Inclusion Size ≤1.0mm; Crack Depth ≤0.3mm	No fracture after 3M cycles; Residual Deformation ≤1.2mm	3,000,000	UT Scanner + MT Probe	AREMA, DIN 17221
E2009	Eddy Current Testing (ET) + UT	Coating Peeling + Internal Porosity	Peeling Area ≤3%; Porosity Diameter ≤0.8mm	No fracture after 5M cycles; Residual Deformation ≤1.0mm	5,000,000	ET Tester + UT Flaw Detector	UIC 864, EN 13481
E1813	MT + Visual Inspection	Bending Stress Concentration Cracks	Crack Length ≤0.8mm; No Brittle Fracture	No fracture after 2.5M cycles; Residual Deformation ≤1.3mm	2,500,000	MT Equipment + Digital Microscope	BS 970, JIS E 1107
E2055	UT + ET	Internal Fractures + Coating Adhesion	Fracture Depth ≤0.2mm; Coating Adhesion ≥95%	No fracture after 4M cycles; Residual Deformation ≤1.1mm	4,000,000	Portable UT/ET Combo Tester	ISO 683-1, REACH

Surface Treatment and Adaptation Standards of Railway E-Clips

Surface Treatment Process	Corrosion Resistance Performance	Applicable Working Environment	Adapted Railway Standards	Matching Rail Types	Application Advantages
Plain Oiled	Basic corrosion protection	Indoor storage or dry inland railway lines	GB/T 1222, DIN 17221	43kg/m, 50kg/m common rails	Low cost; Convenient for on-site cutting and secondary processing
Oxygen Black	Enhanced wear resistance, moderate corrosion resistance	Ordinary trunk railways with infrequent rain	BS 970, UIC	UIC 54, BS 80 lbs rails	Improves surface hardness; Reduces friction between clip and rail shoulder
Zinc Plated	Good corrosion resistance against humid air	Suburban and urban rail transit lines	AREMA, JIS	Light rail and subway special rails	Extends service life in semi-humid environments; Easy to inspect surface defects
Hot Dip Galvanized	Excellent corrosion resistance against salt and moisture	Coastal railways and marine - climate areas	GOST R - EASC, IS CR	60kg/m, UIC 60 heavy rails	Resists salt - spray corrosion; Maintains performance for over 15 years in coastal areas
Dacro Coating	Superior corrosion and high-temperature resistance	High-speed railways and heavy - load freight lines	VALEC, RDSO	115 RE, BS 100 lbs rails	Prevents corrosion from train exhaust; Withstands high vibration without coating peeling
