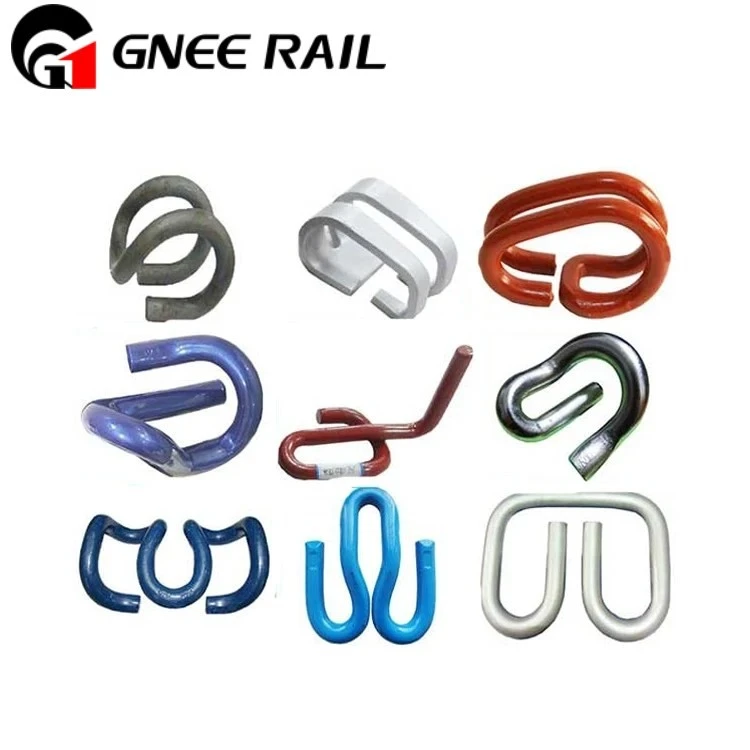

E1 Rail Clip
The E1 spring rail clip is essential in railway track systems for securely fastening rails to sleepers or ties. Its spring design offers superior elasticity, effectively absorbing and dispersing dynamic forces and vibrations caused by passing trains. This capability significantly contributes to maintaining track stability and extending the lifespan of both rail and track components.
E1 Rail Clip Specification
Model: E1800 Rail Clip
Type: e rail clip, elastic rail clip
Other Name: Elastic Railroad Clip, Railway Fastener clip, Railway Clip
Brand: GNEE rail
Toe Load: 1250 kgf
Clamping Force: >18 kN
E rail clips: E1609, E1806, E1809, E1813, E1817, E2001, E2003, E2006, E2007, E2009, E2031, E2055, E2056, E2063, etc.
Application: E clip fastening system
technical parameters
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
