Description
Technical Parameters
Railway Fast Clips Technical Specifications
| Category | Specification | Details / Value |
|---|---|---|

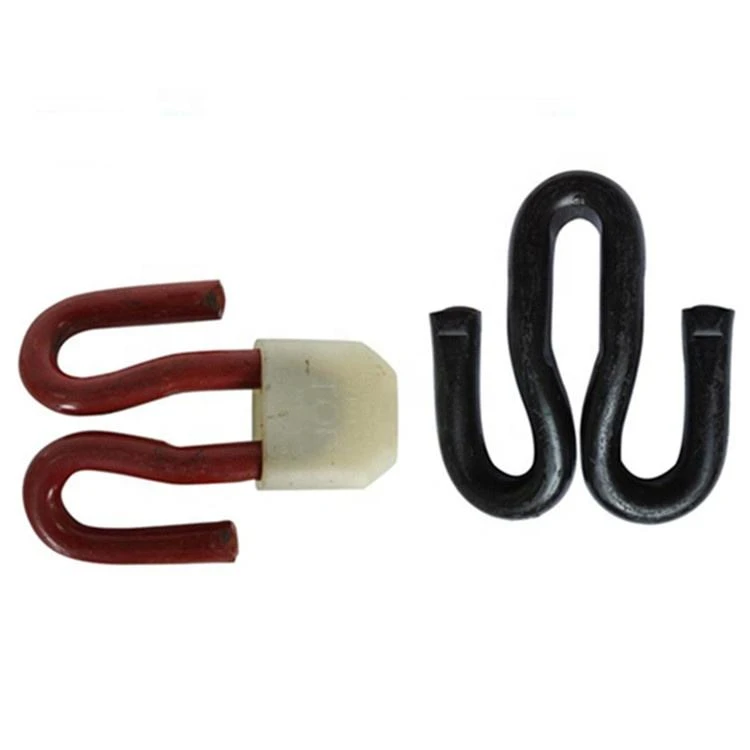

| Product Name | Railway FastL Clip (Rapid Installation Clip) | |
| Primary Function | To provide a high-tensile, elastic clamping force for fastening rails to concrete sleepers, enabling extremely rapid track construction and renewal. | |
| Key Design Feature | Twisted Shank | The twisted section acts as a torsion spring, providing the primary clamping force and allowing for a compact design. |
| Integrated Locking | The "L" shaped end engages with a specially designed shoulder, creating a secure, positive lock that is resistant to vibration. | |
| Mechanical Properties | Tensile Strength | ≥ 1600 MPa |
| Hardness | 44 - 50 HRC | |
| Toe Load | 9 - 13 kN (adjustable via shoulder design) | |
| Application | Track System | Integrated into specific fastening systems for ballasted track with pre-stressed concrete sleepers. |
| Rail Type | Standard flat-bottomed rails (e.g., UIC 60, 54 kg/m). |
Installation System & Comparative Advantages
| Category | Specification | Details / Value |
|---|---|---|
| Installation Speed | Extremely High. A two-person crew can install hundreds of clips per hour, dramatically reducing track possession time. | |
| Key Advantage | Unmatched Speed | The primary benefit. Revolutionized track laying and maintenance efficiency. |
| Ergonomics & Safety | Low physical exertion compared to driving dog spikes or tensioning SKL clips. Reduced risk of repetitive strain injuries. | |
| Consistent Pre-load | The geometry of the clip and shoulder ensures a consistent toe load is achieved every time, minimizing human error. | |
| Visual Verification | A simple visual check confirms correct installation (L-end seated in the groove). | |
| Comparative Advantage vs. E-Clip | Installation Method | FastL: Lateral push. E-Clip: Vertical press. FastL is often faster and requires less vertical clearance. |
| Tooling | FastL tools are typically more compact and maneuverable. | |
| Comparative Advantage vs. SKL Clip | Simplicity | FastL is a much simpler, single-component system compared to the multi-part SKL assembly (clip, anchor block). |
| Installation Speed | Significantly faster than the multi-step tensioning process of SKL clips. |
