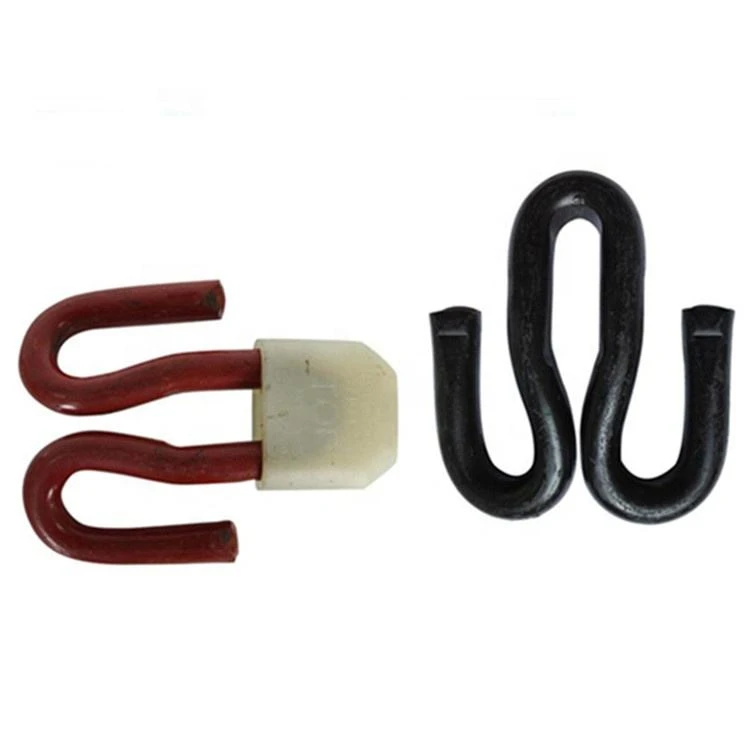

Fastening System Fast Clip Rail

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Railway Fastening Clips - Product Selection & Configuration Parameters

Parameter Category	Specification / Option 1	Specification / Option 2	Application Notes
Clip Type / Model	SKL Type Tension Clip	Nabla (ω) Type Clip	SKL for high-speed/heavy-haul; Nabla for urban transit.
Rail Section Compatibility	60E1 / UIC60	54E1 / UIC54	Customizable for other rail profiles (e.g., 50E1).
Sleeper Type Compatibility	Concrete Sleeper	Wooden Sleeper	Different baseplate/insulator configurations required.
Fastening Assembly Torque	150 - 200 N·m	120 - 150 N·m	Critical for maintaining toe load. Use calibrated wrench.
Corrosion Protection Class	Class B (Hot-Dip Galvanizing)	Class C (Electro-Galvanizing)	Class B for standard environments; Class C for mild, dry conditions.
Operating Temp. Range	Standard Grade: -40°C to +60°C	Low-Temp Grade: -60°C to +60°C	Low-temp grade ensures elasticity in extreme cold.
Electrical Insulation	Integrated Insulator	Separate Insulator Component	Essential for track circuit signaling systems.

Railway Fastening Clips - Quality Assurance & Technical Services

Item	Standard / Commitment	Description & Customer Benefit
Material Certification	EN 10083 / GB/T 1222	Traceable spring steel with certified chemical & mechanical properties.
Fatigue Life Test	> 5 Million Cycles (EN 13146)	Validates long-term performance and reliability under dynamic loading.
Initial Toe Load	Complies with EN 13481 / TB/T 3396	Ensures secure rail holding force right after installation.
Load-Deflection Curve	Consistent & Repeatable	Guarantees predictable elastic behavior and interchangeability.
Third-Party Inspection	Accepted (e.g., Bureau Veritas)	Provides an unbiased quality verification for buyer's peace of mind.
Technical Support	Drawings & Assembly Guidance	Assists in correct installation and system integration.
Warranty	24 Months from shipment	Commitment to product quality and performance.
