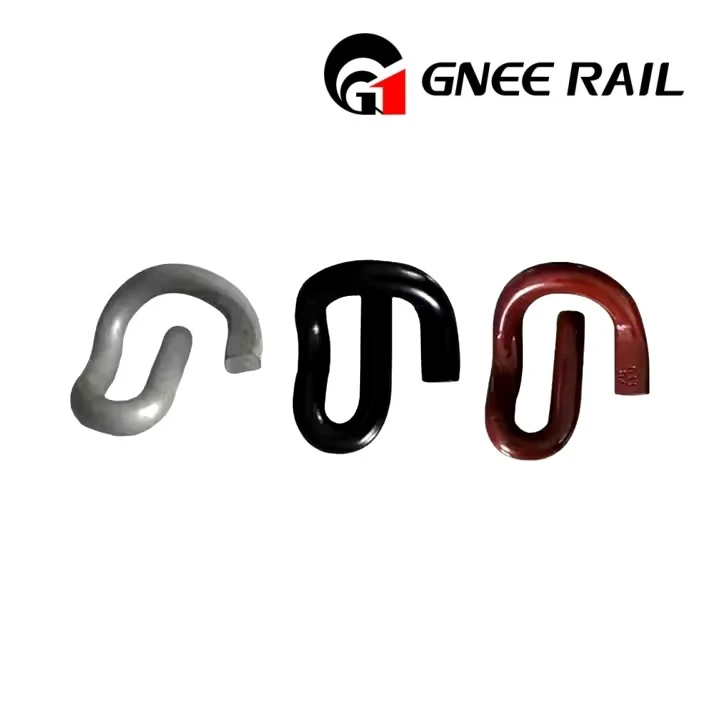

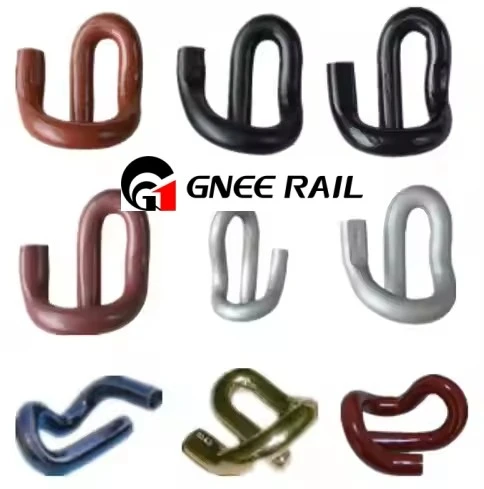

PR601 Railroad Clips
The PR601 rail clip is a key component in our PR series, designed to fasten rails to railway ties and ensure proper track alignment. GNEE Rail, we are ISO9001/2008 certified, specializing in the production of PR series rail clips such as PR85, PR309, PR401, PR601, and PR601A. Our production processes strictly follow ISO standards, ensuring high quality from start to finish. Custom solutions are available, and we encourage you to contact us.
PR601 Railroad Clips material specification
PR601 Railroad Clips material specification
| Item Name | Rail Clip | |||
| Type | PR clip (PR85, PR309, PR401, PR601, PR601A) | |||
| E clip (e1809, e2006,e2007,e2009,etc) | ||||
| Or the type by customers' drawings | ||||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness | For e clip: 44-48HRC For skl clip: 42-47HRC |
|||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking |
|||
| Surface | plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
PR601 Rail Clip technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test | Countries |
| PR309 | 60Si2Mn | ø19 | 130 | 0.91 | 44-48 | ≥9.5KN | 5000000 times without break | Russia | |
| PR401 | 60Si2Mn | ø20 | 127±3 | 38.1±3.0 | 0.97 | 44-48 | ≥9.5KN | 5000000 times without break | Russia |
| PR601 | 60Si2Mn | ø19 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | Russia | ||
| PR85 | 60Si2Mn | ø19 | 88±3 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | Russia | |
| PR415 | 60Si2Mn | ø20 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | Russial | ||
| PR601 | 60Si2Mn | ø20 | 44-48 | ≥9.5KN | 5000000 times without break | Russia |
PR601 Rail Clip workshop
customer visit for PR Rail Clips
Participating in the Vietnamese exhibition
