Nabla Clip For Railway

Name: Nabla Clip For Railway - China Nabla Clip For Railway Manufacturers Suppliers Factory - GNEE RAIL
Brand: GNEE
SKU: 277352472

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Specifications

Rail Clip Type	Clip Size								Material
E Clip	E1609	E1809	E1817	E2001	E2006	E2009	E2055	E2056	60Si2Mn
SKL Clip		SKL1	SKL2	SKL3	SKL12	SKL14	SKL75
W Clip	Deenik Clip		Fast Clip		Russia Clip		China Clip
Crane Rail Clip	KPO1	KPO3	KPO6	KPO9	Gantrail Clip		Gantrex Clip		45#,55#

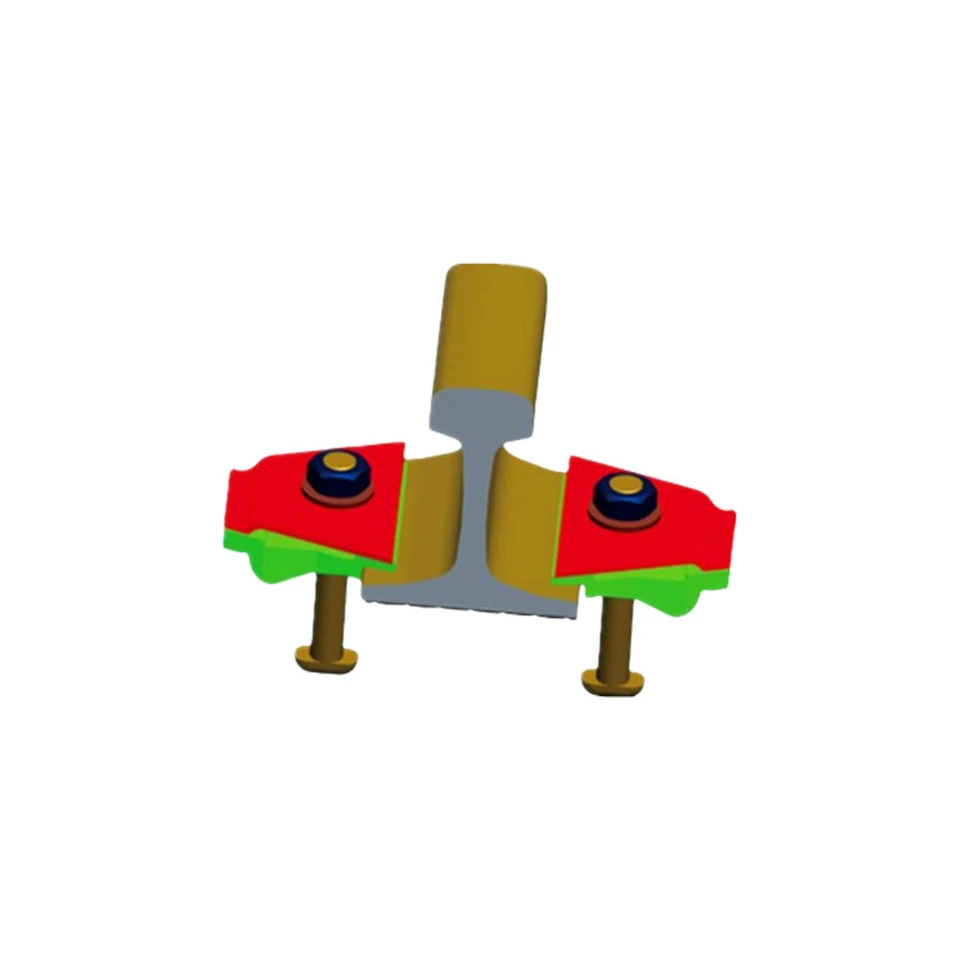

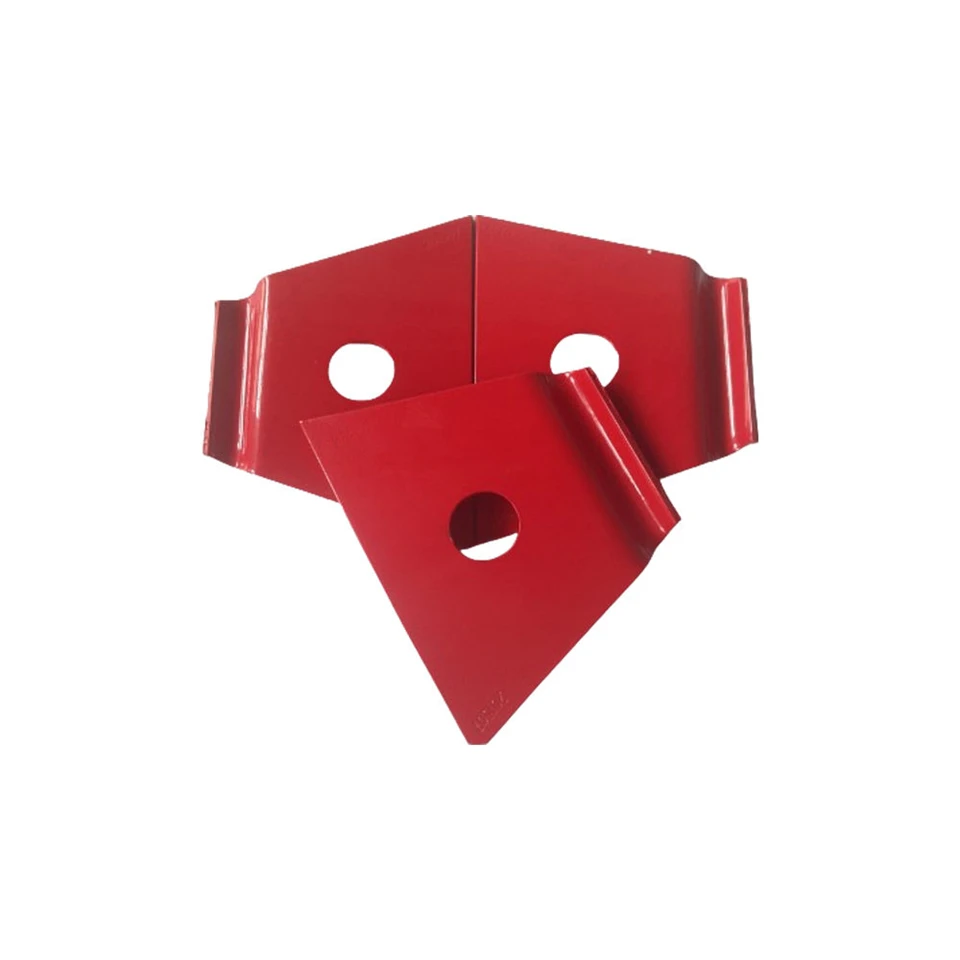

Nabla Clip for Railway

Feature Category	Description
General Function	An elastic fastening clip designed to clamp the rail foot securely to a baseplate or sleeper, providing restraint against vertical, lateral, and longitudinal forces.
Key Identifying Feature	Characteristic inverted "V" shape, resembling the nabla symbol (∇).
Primary Material	High-carbon spring steel (e.g., 60Si2MnA, 60Si2CrA). Heat treated (oil-quenched and tempered) for elasticity and strength.
Surface Treatment	Typically black oxide (bluing) or epoxy powder coating for corrosion resistance.
Installation Method	Press-fit (often using a hydraulic tool) into the shoulders of a dedicated baseplate/insert.
