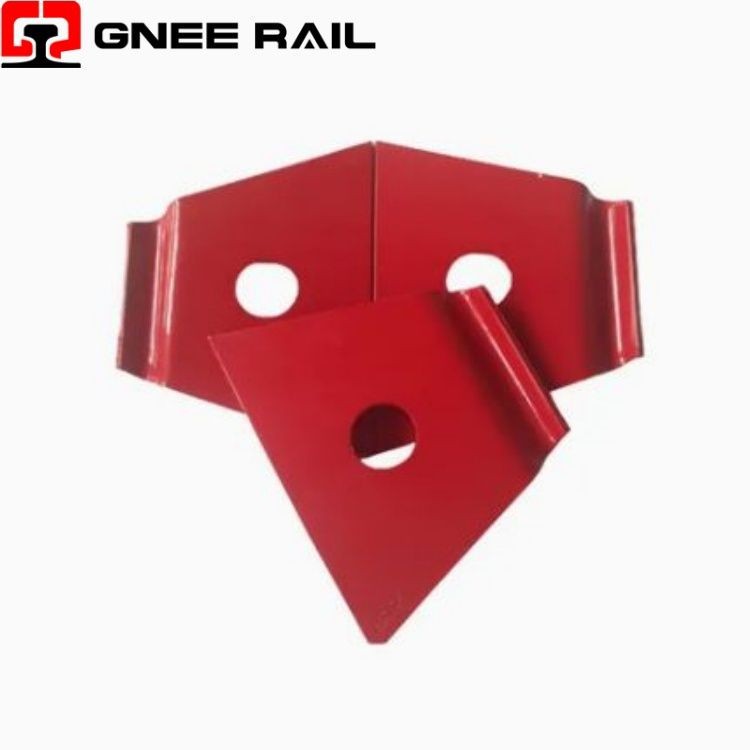

Nabla Clips System

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail Nabla clip Fastening System

The Railway Nabla Clip is a precision-forged, dual-modulus elastic fastening component distinguished by its eponymous inverted-delta geometry, which functions as a mechanical diode in the track system-allowing controlled thermal expansion while blocking resonant energy transmission. Fabricated through a proprietary hot-forming and austempering process, the clip achieves a bainitic microstructure that delivers exceptional toughness without the brittleness of traditional martensitic springs.

Technical Specifications:

Feature Category	Specification / Detail	Functional Benefit
Metallurgical Structure	Bainitic (Austempered)	40% higher impact toughness than conventional spring steel
Insertion Force Profile	Progressive with Terminal Snap	Tactile confirmation without measurement tools
Seismic Rating	0.8g Lateral Acceleration	Qualified for seismic zones and mountain rail routes
Thermal Operating Range	-40°C to +70°C	Zero clamping force degradation across extremes
Rollover Resistance	Wraparound Toe Geometry	Mechanical interlock prevents rail rotation on curves

Installation & Maintenance Perspective:

Bainitic Microstructure: Austempering creates a fine acicular ferrite and carbide structure that outperforms conventional quenched-and-tempered clips in impact toughness by 40%.

Directional Grain Flow: Precision hot-die forging aligns grain boundaries along the clip's neutral axis, eliminating transverse weaknesses common in laser-cut or stamped alternatives.

Stress-Relieved Geometry: Post-forming vibratory stress relief removes residual manufacturing stresses without compromising the spring steel's base properties.

Maintenance & Operational Perspective

Rollover Prevention: The clip's wraparound toe geometry creates a mechanical interlock that actively counteracts wheel flange forces attempting to rotate the rail outward.
Seismic Resilience: Testing confirms maintained clamping force during simulated seismic events up to 0.8g lateral acceleration without anchor bolt yielding.
Thermal Buckling Containment: During extreme heat events, the clip's progressive spring rate absorbs rail expansion forces that would otherwise trigger track buckling.
