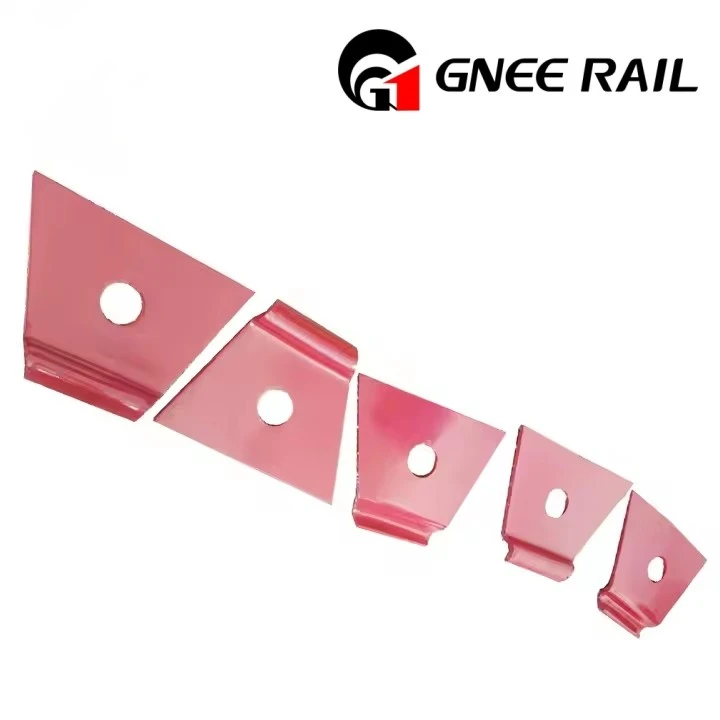

Nabla Elastic Rail Clip
The NABLA rail clip is an integral part of the NABLA fastening system, widely utilized throughout Europe for tram tracks. Suitable for both ballasted and concrete sleeper tracks, it delivers excellent performance on tight-radius curves, high electrical insulation, and effective lateral force absorption. Its glass fiber-reinforced gauge blocks provide superior strength and durability. GNEE Rail manufactures a complete range of rail fasteners, including rail clips, joints, screws, anchor bolts, clamp plates, fishplates, and fishplate bolts, adhering to international standards such as GB/TB, AREA, UIC, BS, DIN, ASTM, and AS. Contact us for further inquiries.
Nabla Spring Clip specification
| Item Name | Elastic Rail Clip | |||
| Type | Nabla Spring Clip | |||
| E clip (e1809, e2006,e2007,e2009,etc) | ||||
| Or the type by customers' drawings | ||||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness | For e clip: 44-48HRC For skl clip: 42-47HRC |
|||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking |
|||
| Surface | plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
Nabla Spring Clip technical parameters
| Series | Model | Spec. | Hardness |
| E rail clip | III type rail clip | ø18 | 44-48HRC |
| E1609 rail clip | ø16 | ||
| E1809 rail clip | ø20 | ||
| E1804 rail clip | ø18 | ||
| E1806 rail clip | ø18 | ||
| E1813 rail clip | ø18 | ||
| E2001 rail clip | ø20 | ||
| E2007 rail clip | ø20 | ||
| E2009 rail clip | ø20 | ||
| E2039 rail clip | ø20 | ||
| E2055 rail clip | ø20 | ||
| E2056 rail clip | ø20 | ||
| E2063 Rail Clip | ø20 | ||
| E2091 Rail Clip | ø20 | ||
| PR rail clip | PR85 Rail Clip | ø13 | |
| PR309A Rail Clip | ø19 | ||
| PR401 Rail Clip | ø20 | ||
| PR415 Rail Clip | ø20 | ||
| PR601A Rail Clip | ø22 | ||
| Vossloh clip& Forged rail clip | SKL 1 Rail Clip | ø13 | 42-47HRC |
| SKL 3 Rail Clip | ø13 | ||
| SKL 12 Rail Clip | ø13 | ||
| SKL 14 Rail Clip | ø14 | ||
| Special rail clip | Special rail clip | ø13 | |
| Russia rail clip | Russia rail clip | ø18 | |
| Deenik clip | Deenik clip | ø25 | |
| Anti-vandal clip | Anti-vandal clip | ø18 | |
| Fast clip | Fast clip | ø15 | |
| GL1419 | GL1419 | ø14 | |
| Nabla Spring blade | Nabla Spring blade | ||
| KPO/rail clamp | KPO/rail clamp | ||
| RAIL CLIP GANTREX | RAIL CLIP GANTREX | ||
| We can also produce customized rail clips according to your drawings or samples. | |||
