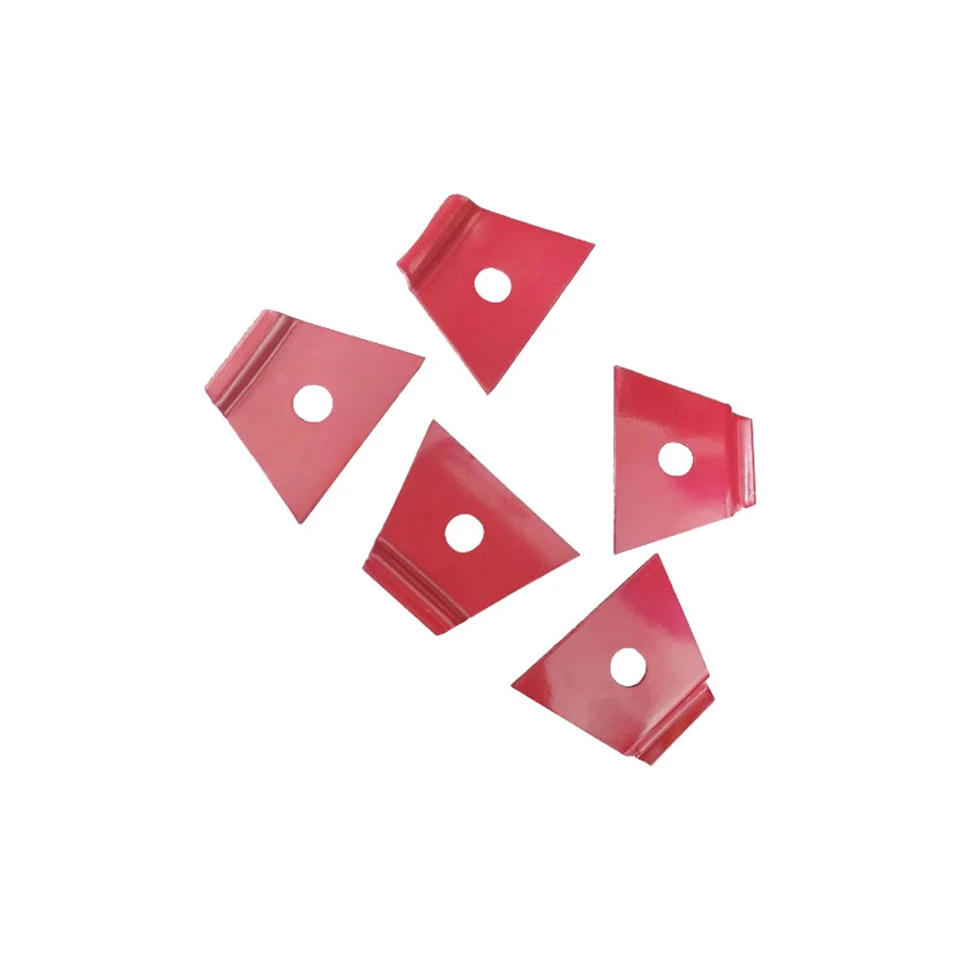

Description
Technical Parameters
Nabla Clip System Component Overview
| System Component | Material | Function Description | Standard Color |
|---|---|---|---|
| Nabla Clip (W-type Spring) | High-carbon Spring Steel (e.g., 60Si2Mn) | Provides the essential elastic clamping force to secure the rail foot. The "W" shape stores significant elastic energy. | Black (Phosphated) |
| Insulation Plate (Rail Pad) | Nylon PA66 / HDPE / Rubber | Placed between the rail foot and the baseplate to provide electrical insulation and cushioning. | Black / Grey |
| Anchor Spike / Stud | Carbon Steel (Q235) | Press-fitted or glued into the concrete sleeper, forming the foundation of the fastening system. | Yellow (Galvanized) |
| Clip Base / Shoulder | Ductile Iron / Forged Steel | Houses the Nabla clip and transmits the clamping force to the anchor point. Can include a torsional shoulder. | Black |
| Insulation Block / Side Post | Glass-Fiber Reinforced Nylon (PA66+GF) | Insulates the clip from the base and prevents lateral movement. Critical for maintaining electrical isolation. | Orange / Yellow |
Nabla Clip Installation & Performance Parameters
| Category | Parameter / Step | Specification / Guideline |
|---|---|---|
| Pre-Installation Check | 1. Sleeper/Baseplate Inspection | Ensure anchor spikes are secure and undamaged. |
| 2. Component Verification | Confirm the presence of insulation plate and blocks. | |
| 3. Rail Positioning | Place the rail correctly on the insulation plate. | |
| Installation Procedure | 1. Clip Placement | Position the Nabla clip onto the base/shoulder. |
| 2. Tool Engagement | Use a dedicated Nabla Clip Installation Tongs. | |
| 3. Application of Force | Squeeze the tool handles to compress the clip. | |
| 4. Seating the Clip | Guide the clip's legs into the designated grooves on the base. | |
| Performance Metrics | Toe Load (Clamping Force) | 9 - 11 kN (per clip) |
| Rail Lifting Restraint | Prevents rail lift-off under dynamic loads. | |
| Electrical Resistance | > 10^8 Ω (per fastening assembly) | |
| Lateral Rail Restraint | Provided by the friction and the clip-base interaction. | |
| Post-Installation | Visual Inspection | Ensure both legs are fully and correctly seated. No visible gaps. |
| Common Issue | Improper seating leading to reduced clamping force. |
