Good Hardness SKL Clip

Good Hardness SKL Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.
Send Inquiry
Chat Now
Description
Technical Parameters

Rail skl Clip Fastening System

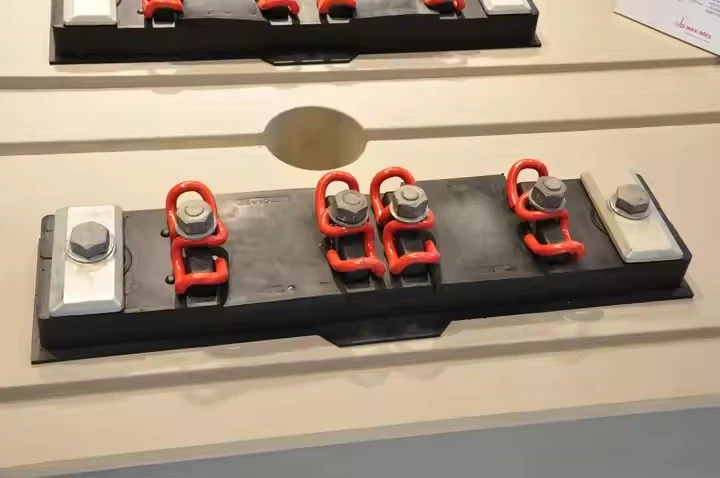

Railroad Railway Steel Rails SKL Clips

Railway E Clips are engineered fasteners formed from spring steel rod into a compact E-shaped configuration, designed to secure rails within sleeper anchorage systems. These clips generate precise clamping force through elastic bending during installation, creating a resilient connection that maintains track geometry while absorbing dynamic loads from passing trains without permanent deformation.

Technical Specifications:



Feature Benefit Performance Metric
E-Shape Geometry Three-point contact 360° load distribution
Elastic Design Self-adjusting tension 8-12mm deflection range
Material Resilience Fatigue resistance 5M+ cycle lifespan
Installation Method Tool-free option 30-second replacement
Temperature Range Climate adaptability -50°C to +80°C operation
Surface Options Corrosion protection 1000h salt spray rating
Elastic Rail Clamp

Installation & Maintenance Perspective:

  • Three contact points spread forces across rail foot
  • Outer legs transfer lateral loads to sleeper shoulders
  • Center leg provides vertical hold-down pressure
  • Even stress distribution prevents localized fatigue
  • Balanced design accommodates asymmetric loading





Maintenance & Operational Perspective

  • Deflection during insertion creates pre-load tension
  • Snap-in engagement confirms proper positioning
  • Removal tool compresses clip for easy extraction
  • No threaded components eliminates loosening risk
  • Consistent toe load regardless of installer skill
Railroad Fastener SKL Clip
Gnee Professional supplier













Rail Shoulder Fastening System Rail Shoulder Fastening SystemRail Shoulder Fastening System
