Rail skl Clip Fastening System

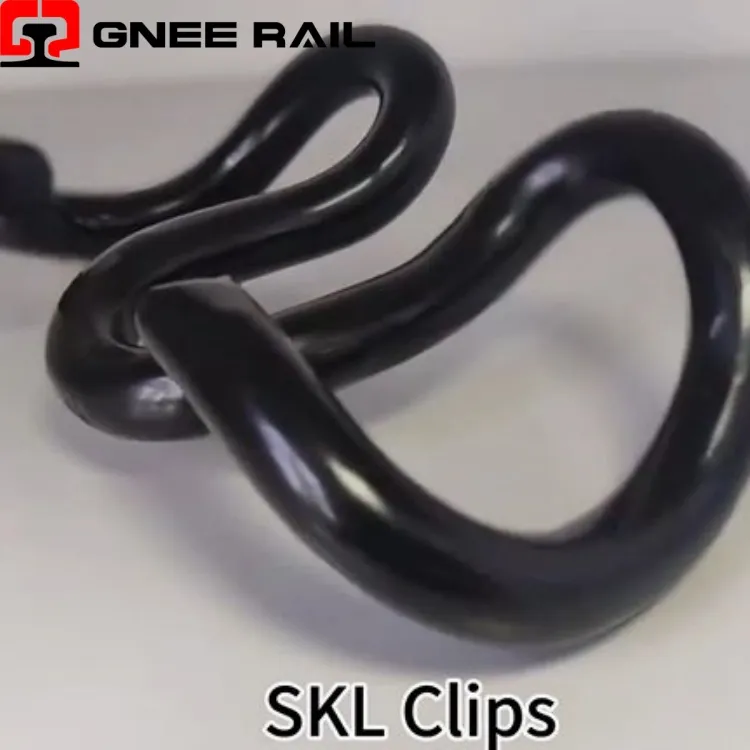

The Railway SKL Clip is a V-shaped tension clamp manufactured from hot-forged spring steel, engineered for concrete sleeper fastening systems with cast-in shoulders. This clip operates through elastic arm deflection during vertical insertion, converting installation force into sustained clamping pressure on the rail foot. The symmetrical double-arm design ensures balanced load distribution while the precision-formed crown provides consistent force transmission across the full service life.
Technical Specifications:
| Parameter | Specification | Performance Indicator |
|---|---|---|
| Spring Type | V-shaped tension clamp | Symmetrical double-arm |
| Material | Hot-forged spring steel | 1,200–1,400 MPa tensile strength |
| Clamping Force | Per installed clip | 10–14 kN nominal range |
| Installation Stroke | Arm deflection from free state | 18–25 mm per arm |
| Service Life | Heavy-haul application | 25–35 years typical |
Installation & Maintenance Perspective:
- The symmetrical V-geometry ensures equal clamping force on both sides of the rail foot, maintaining consistent gauge retention.
- Crown curvature is optimized to distribute bending stress uniformly across the clip width, eliminating localized fatigue points.
- Progressive arm deflection creates a non-linear force curve that accommodates track settlement without clamping loss.
Maintenance & Operational Perspective
- Vertical insertion using hydraulic or manual setting tools enables consistent installation regardless of operator technique.
- Audible engagement feedback confirms proper seating of clip arms into shoulder retention pockets.
- Mechanical stop features prevent over-deflection during installation, protecting against plastic deformation.
