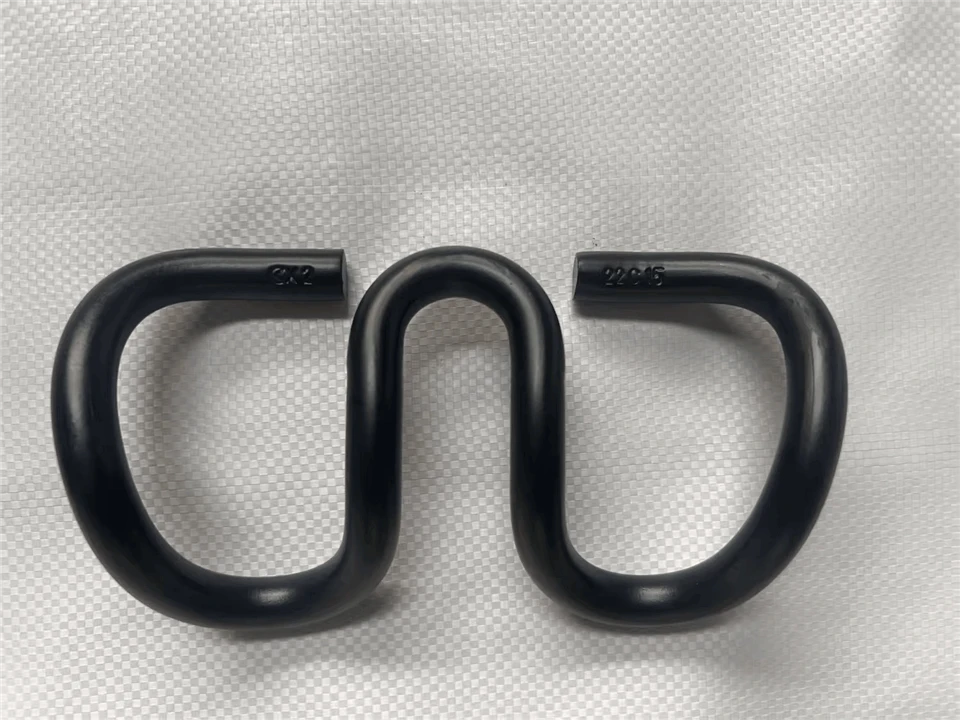

Railway Elastic Clip SKL1
|
Parameter |
Specification |
Remarks |
|---|---|---|
|
Model Number |
SKL1 |
German-designed elastic rail clip |
|
Type |
Tension clamp (Nabla-type clip) |
For concrete sleepers/slab tracks |
|
Material |
60Si2CrA spring steel |
Tensile strength ≥1700 MPa |
|
Hardness |
HRC 44-50 |
ISO 6508 compliant |
|
Rail Compatibility |
UIC54/UIC60/EN 13674-1 |
Fits standard European rail profiles |
|
Clamping Force |
10–12 kN (per rail) |
DIN 45673 compliant |
|
Installation Torque |
130–160 N·m |
Requires calibrated torque wrench |
|
Fatigue Life |
≥4 million cycles |
Tested per EN 13146-5 |
Products Description
|
item |
value |
|
Purpose |
Railway Fastening |
|
Condition |
New |
|
Type |
Rail Clip |
|
Material |
Q235 steel |
|
Dimensions (L x W x H) (mm) |
other |
|
Place of Origin |
China |
|
Brand Name |
Gnee |
Compatibility Table
| Component | SKL1 Compatibility | Required Accessories |
|---|---|---|
| Baseplate | Zw 687a or SKL-12 plate | SKL tensioning tool |
| Rail Pad | 8-10mm PU (Shore A 65-80) | SKL alignment gauge |
| Insulator | Nylon GF-12 (6.6kV/mm) | Clip applicator |
| Fastening Kit | Vossloh W-14 system | Torque wrench (150Nm) |
