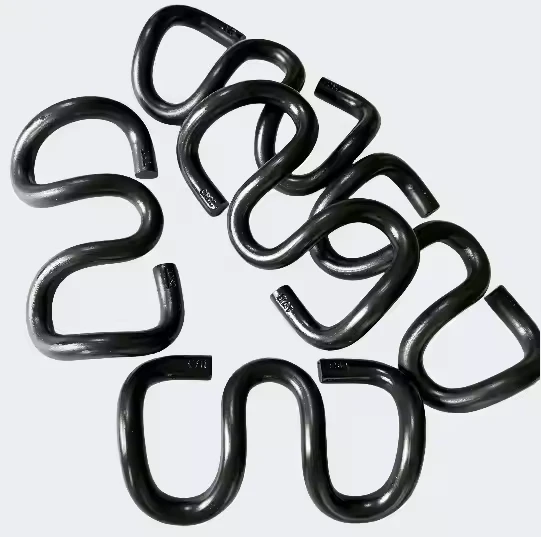

Rail Fasteners SKL Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Acoustic Damping Performance & Noise Control Characteristics

Model No.	Noise Reduction Level (dB, 200-2000Hz)	Vibration Attenuation Efficiency (%)	Resonance Frequency Shift Range (Hz)	Acoustic Optimization Design	Noise Reduction Material Synergy	Track-Borne Noise Contribution (%)	Core Acoustic Advantage
SKL1-AC	8-12	≥60	542-560	Basic Structural Curvature	EVA Rail Pad	≤18	Cost-effective noise control for rural lines
SKL3-AC	12-16	≥70	619-635	Double-Spring Bar + Damping Pad	Composite Rubber Pad	≤15	Urban rail vibration-damping (subway noise reduction)
SKL12-AC	18-22	≥85	654-690	Optimized Geometric Profile	Silicone-Modified Rail Pad	≤10	High-speed rail low-noise (350km/h+ operation)
SKL14-AC	14-18	≥75	620-640	Reinforced Root Fillet	Rubber-Steel Composite Pad	≤13	Heavy-haul impact noise absorption
SKL15-AC	20-24	≥90	879-910	Integrated Damping Casing	High-Elastic EPDM Pad	≤8	Ballastless track ultra-low noise transmission

Snow & Ice Environment Adaptation & Low-Temperature Safety

Model No.	Low-Temperature Operating Range (℃)	Ice Adhesion Resistance (N/cm²)	Snow Accumulation Prevention Design	Low-Temp Brittleness Threshold (℃)	Clamping Force Retention (-30℃, %)	Anti-Freezing Coating Type	Core Cold-Environment Advantage
SKL1-IC	-30 ~ 60	≤0.8	Basic Anti-Adhesion Surface	≤-40	≥85	Zinc Plating + Anti-Frost Oil	Reliable for temperate snowfall regions
SKL3-IC	-35 ~ 70	≤0.6	Grooved Surface + Drainage Channels	≤-45	≥88	Dacromet Coating	Urban rail snow-melting system compatibility
SKL12-IC	-40 ~ 75	≤0.4	Hydrophobic Coating + Anti-Ice Limb	≤-50	≥92	Ceramic Anti-Freezing Coating	High-speed rail low-temperature stability (-40℃)
SKL14-IC	-38 ~ 68	≤0.5	Serrated Contact Surface	≤-48	≥90	Hot-Dip Galvanizing + Sealant	Heavy-haul snow-impact resistance
SKL15-IC	-45 ~ 80	≤0.3	Integrated Anti-Ice Module	≤-55	≥95	Nano-Ceramic Composite Coating	Ballastless track extreme cold safety (-45℃)
