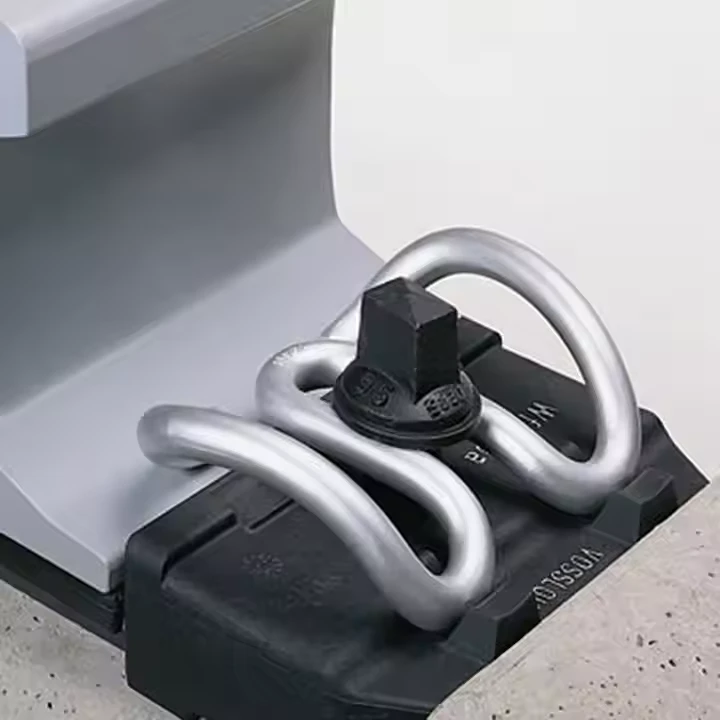

↵Rail SKL Clip Fastening System
The Railway SKL Clip is a precision-engineered, top-performance spring steel fastener central to modern rail fixation systems, particularly in high-speed and heavy-haul applications. Distinguished by its robust, often "double-wave" or complex curved geometry, it operates as a preloaded spring that clamps the rail base to a concrete sleeper or slab track foundation. Its design philosophy emphasizes maintaining a consistent clamping force (toe load) over decades of service, resisting dynamic load fatigue, environmental corrosion, and plastic deformation. The SKL system is engineered for reliability, contributing directly to track stability, safety, and reduced lifecycle maintenance costs.
Technical Specifications:
| Aspect | Focus Area | Distinguishing Characteristic |
|---|---|---|
| System Role | Track Engineering | Primary Load-Bearing Elastic Element. It is the main component defining the fastening system's mechanical performance. |
| Performance Benchmark | Durability | Maintenance-Free Service Interval. Designed for exceptionally long periods (e.g., 10-15+ years) between required interventions. |
| Production Innovation | Technology | Use of Industry 4.0 & Additive Manufacturing for Tooling. Dies and forming tools are optimized using digital simulation and 3D printing. |
| Inspection Paradigm | Asset Management | Shift from Condition-Based to Predictive Maintenance. Moving from finding faults to preventing them through data analysis. |
| Supply Chain Consideration | Global Standards | Interoperability & Counterfeit Prevention. Strict certification and unique part markings to ensure authenticity across global supply networks. |
Functional & Engineering Perspective
Track Circuit Reliability: Ensures uninterrupted electrical isolation and consistent contact pressure vital for fail-safe track circuit operation in automated signaling and train detection systems.
Modular Track System Integration: Functions as the core elastic component within proprietary modular fastening systems (e.g., from manufacturers like Vossloh, Pandrol), allowing for rapid installation and replacement in standardized track forms.
Derailment Containment: Contributes to overall track panel integrity, helping to contain and minimize damage in low-probability derailment events by keeping rails broadly aligned.
Maintenance & Operational Perspective
- Induction Heat Treatment: Critical sections of the clip may undergo localized induction hardening and tempering, creating tailored zones of high hardness for wear resistance and toughness for elasticity.
- Automated Robotic Handling: Post-forging and heat treatment, clips are handled by automated robotic systems for quenching, tempering, and coating to prevent nicks, scratches, or distortion from manual processes.
- Proprietary Corrosion Protection System: Features a multi-layer defense, often combining a metallized coating (e.g., zinc-aluminum alloy) with an organic topcoat, engineered for 30+ years of service in harsh environments.
Gnee Professional supplier
