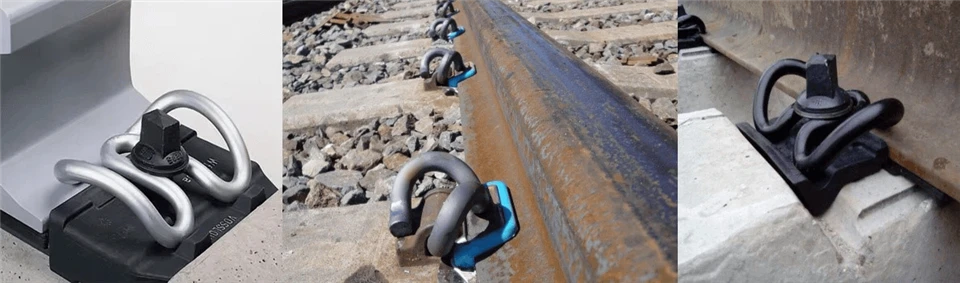

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.
Send Inquiry
Chat Now
Description
Technical Parameters

Physical Parameters and Matching Components of Railway SKL Clips

SKL Clip Model Diameter (mm) Single Weight (kg/pc) Material Grade Surface Treatment Matching Screw Spike Specification Matching Rail Pad Material Applicable Rail Type
SKL-1 13 0.48 60Si2CrA Oxide black M24×150mm EVA UIC 54, 50kg rail
SKL-3 13 0.48 60Si2CrA Oiled plain M24×150mm Rubber UIC 54, Urban rail
SKL-12 13 0.53 38Si7 Color painting M24×150mm Composite rubber UIC 60, 60kg rail
SKL-14 13 0.53 60Si2MnA Oxide black M24×150mm EPDM 50kg rail, 60kg rail
SKL-15 14 0.61 60Si2CrA Customized coating M24×160mm Reinforced rubber Ballastless track rail

SKL Clip Fast Rail System

Track Adaptability and Installation & Maintenance Details

SKL Clip Model Adaptable Track Speed (km/h) Axle Load Bearing Capacity (tons) Installation Position Key Installation Requirement Maintenance Cycle Failure Warning Signal Compliance Standards
SKL-1 ≤120 ≤20 Ordinary railway sleepers Align with gauge baffle precisely 12 months Reduced buckle pressure DIN 17221, GB/T 1222
SKL-3 ≤160 ≤25 Urban subway sleepers Ensure double spring bar alignment 8 months Abnormal vibration noise EN 10139, NF F 500-50
SKL-12 ≤350 ≤30 High-speed rail ballastless track plates Millimeter-level pre-embedded positioning 18 months Clip deformation UIC 864-1, EN 13481
SKL-14 ≤200 ≤35 Mixed passenger-freight railway sleepers Adjust buckle pressure dynamically 10 months Screw spike loosening ISO 898-1, EN 10025
SKL-15 ≤250 ≤30 High-speed rail turnout areas Match embedded casing tightly 15 months Gap between clip and rail DIN 17221, EN 13481
