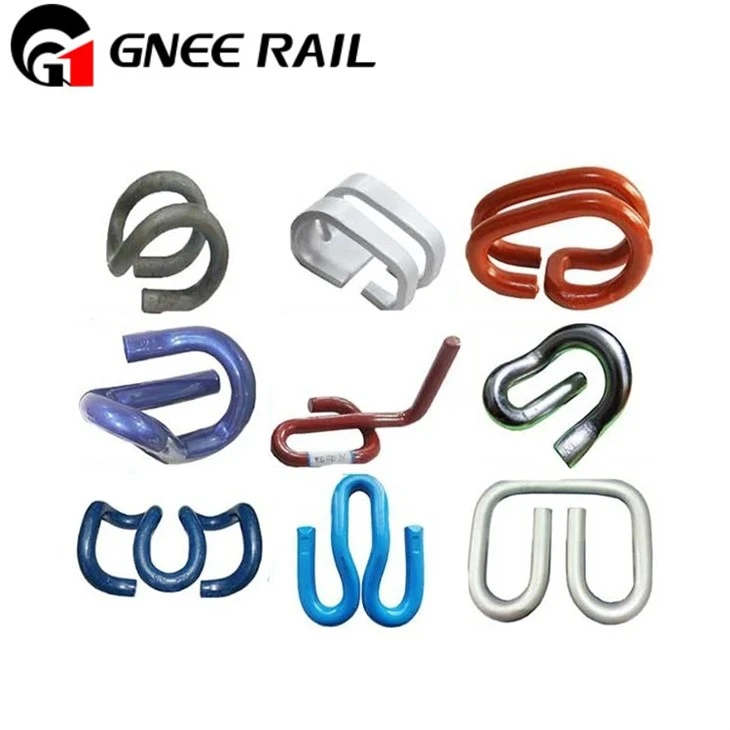

Type I Rail Clip
GNEE type I elastic clips, which are ω-shaped, were developed to address the need for substantial elevation adjustments in railway infrastructure. Type I clips are suitable for railway tracks using 50 kg/m rails.
Type I elastic clips are divided into two types, A and B. Type A clips exert a clamping force of 8 kN per clip with an elastic travel of 9 mm, while Type B clips exert a clamping force of 9 kN per clip with an elastic travel of 8 mm. The static stiffness of the rail pad underneath ranges from 90 to 120 kN/mm.
Type I and II Rail Clip specification
| Fastening type | Type I Rail Clip | Type I Rail Clip adjusted | Type II Rail Clip | ||
| Application conditions | <120 km/h | 120～200 km/h | Application conditions | ||
| Conventional resistance section | |||||
| Standard | TB/T 1495 | TB 1911 | TB/T 3065 | ||
| Applicable Rail Sleeper Type | Type I and II concrete shoulders | Type Ⅲ concrete shoulders | |||
| Rail Clip | Type | Type A | Type B | Type A | Type II |
| Clamping force | 8 kN | 9 kN | 8 kN | 10 kN | |
| Stretch range | 9 mm | 8 mm | 9 mm | 10 mm | |
| Fastening method | Rail Bolt Fasten | ||||
| Tightening torque | About 80 to 120 N.m about 120 to 150 N.m (small radius section) | about 100～140 N.m | |||
| Rail longitudinal resistance | >7.5 kN | >9 kN | |||
| Rail Pad | Set | Single-layer rubber rail pad between rail and sleeper | |||
| Model | 60-10-11 | 60-10-17 60-12-17 | |||
| Size | 185×149×10 | 190×149×10(12) | |||
| 90～120 kN/mm | 55～80 kN/mm | ||||
| Standard | TB/T2626 | ||||
| Steel Rail Height | Rail surface height | 186mm | |||
| 10 mm | 20 mm | 10 mm | |||
| Adjust position | Under the rails, adjust rail pad height | ||||
| gauge | adjust amount | -8～+12 mm | -12～+8 mm | ||
| adjust method | Adjust by replacing different numbers of gauge and baffle seats | ||||
| adjust level | 2mm | ||||
