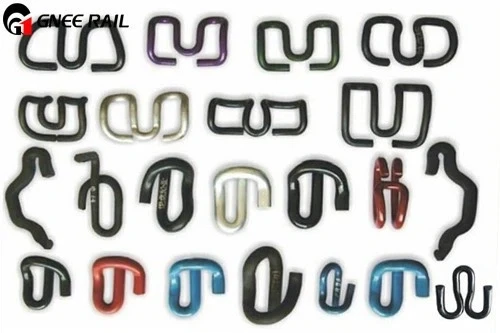

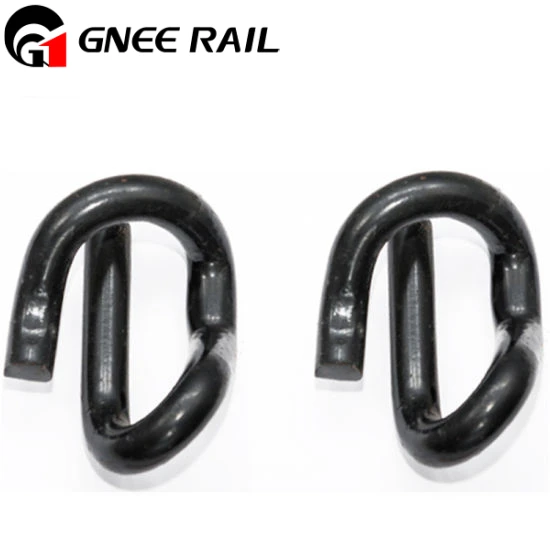

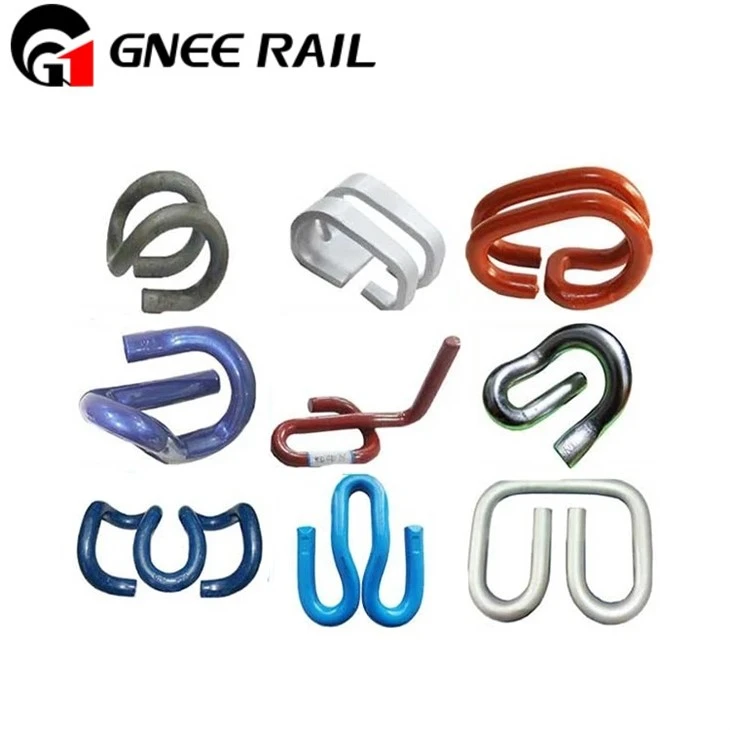

Type III Railway Clip
Rail clips, also known as elastic rail clips, railway clips, track clips, are essential components used to secure railroad tracks to the sleepers (or baseplates). GNEE rail is a trusted and professional railway clip supplier, we have been dedicated to developing, manufacturing, and exporting railway products for 20 years. We have the capability to accommodate a wide range of toe load and axle load requirements for securely fixing rails on wooden, steel, or concrete sleepers. Please feel free to contact us at your convenience. We are here to assist you with any inquiries or specific requirements
Type III Rail Clip Specification
Item Type: III Rail Elastic Clips
Brand: GNEE rail
Diameter: φ18
Weight: 0.80kg/pc
Material: 60Si2MnA or according to customer needs
Hardness: 44-48HRC
Buckle Pressure: ＞11KN
Working Deformation: 13mm
technical parameters
| Item | Type | Materials | Diameter | Weight | HRC | Under pressure | Fatigue test |
| Type III rail clip | elastic railroad clip, railway fastener clip, railway clip | 60Si2MnA | ø18 | 0.80kg | 44-48 | ≥950kgf | 5000000 times without breaking |
