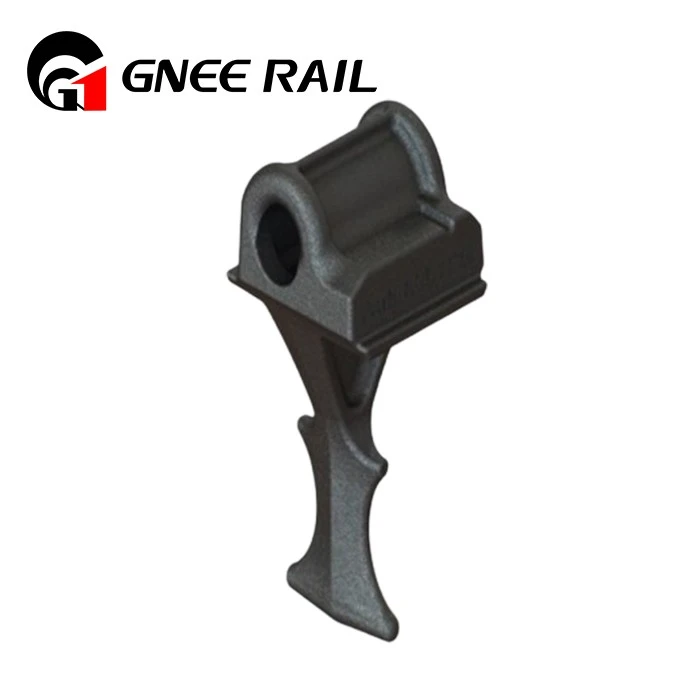

↵Rail Shoulder Fastening System
The GNEE Elastic Rail Shoulder represents a paradigm shift in railway fastening technology – no longer just a passive component, but an intelligent interface that actively manages the complex forces between rail and sleeper. Our third-generation shoulder system integrates material science, precision engineering, and smart technology to deliver unparalleled stability, durability, and maintenance efficiency for high-speed, heavy-haul, and urban transit networks worldwide.
Technical Specifications:
| Parameter | Specification | Innovation & Purpose |
|---|---|---|
| Product Name | Intelligent Rail Shoulder / Baseplate System | Active force management interface, not just a spacer |
| Core Function | Multi-dimensional force distribution: Vertical load transfer, lateral restraint, longitudinal creep control | Transforms point loads into distributed stresses across sleeper surface |
| Material Architecture | Duplex Matrix Composite – Spheroidal graphite iron core with ceramic-reinforced polymer surface layer | Combines ductile iron's strength with polymer's vibration damping and corrosion resistance |
| Surface Technology | GNEE-Shield Pro™ – 7-layer gradient coating system: adhesion > bonding > barrier > cathodic > wear > friction > thermal layers | 15-year corrosion guarantee in coastal environments, 25-year in standard conditions |
| Precision Alignment | Integrated Inclinometer System – 1:20 or 1:40 rail cant with ±0.1° accuracy | Eliminates rail tilt variations that cause uneven wheel-rail contact and accelerated wear |
| Force Monitoring | Embedded Micro-strain Sensors – Optional IoT-enabled version with real-time load measurement | Provides data on clamping force, vertical loads, and lateral forces for predictive maintenance |
Quality Assurance Protocol
Material Certification: EN 1563 Grade 500-7 with full traceability
Dimensional Accuracy: 100% laser scanning against master CAD model
Mechanical Testing: Batch testing to 150% of design load
Environmental Validation: Salt spray, UV exposure, thermal cycling
Documentation: EN 10204 3.2 certification with digital twin record
Manufacturing Capacity
- Annual Output: 8 million units across 4 automated production lines
- Lead Time: 4-6 weeks standard, 10 days expedited for critical projects
- Customization: 2-week rapid prototyping for special applications
- Global Support: Manufacturing hubs in Asia, Europe, and Americas
