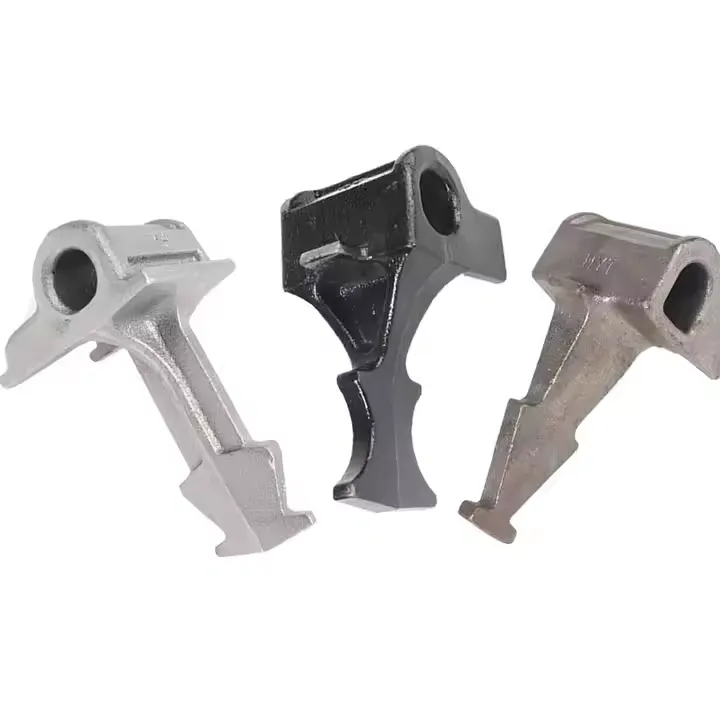

Rail Shoulder Fastening System
A precision-engineered lateral restraint component designed to provide structural stability and gauge retention by transferring rail loads to sleepers through controlled elastic deformation. The system's optimized geometry ensures consistent performance under dynamic loading conditions.
echnical Specifications:
| Parameter | Elastic Shoulder ES-Series | Composite Shoulder CS-Series | Heavy-Duty Shoulder HD-Series |
|---|---|---|---|
| Profile Geometry | Asymmetric Torsion Design | Symmetric Load Distribution | Reinforced Monoblock Structure |
| Material Composition | 60Si2CrA Spring Steel | PAGF35 + Steel Inserts | 42CrMo4 Forged Alloy |
| Dimensional Matrix | 180×110×68 mm (±0.3 mm) | 178×108×70 mm (±0.5 mm) | 185×115×72 mm (±0.2 mm) |
| Surface Integrity | Shot Peened + Zn-Ni Coating | Molded-in Color + UV Stabilizer | Plasma Nitrided + DLC Coating |
| Stiffness Gradient | Progressive 15-25 kN/mm | Constant 18 kN/mm | Dual-stage 12-30 kN/mm |
| Temperature Adaptation | -50°C to +120°C | -40°C to +90°C | -60°C to +200°C |
| Weight Optimization | 3.8 kg | 2.1 kg | 4.5 kg |
System Characteristics:
Bi-elastic Behavior: Dual-phase stiffness curve for impact absorption and steady-state retention
Topology-Optimized Design: Finite-element derived contours minimize stress concentration
Environmental Resilience: Specialized material formulations for coastal, desert, and arctic applications
Acoustic Modulation: Integrated damping layers reduce structure-borne noise by 6-8 dB
Maintenance Intelligence: Wear indicators and RFID tracking points for predictive replacement
Clip Interface Versatility: Universal compatibility with E-clip, SKL, and FASTCLIP systems
Deployment Scenarios:
- High-speed rail slab track transitions
- Heavy-haul corridor curve reinforcement
- Urban transit vibration-sensitive zones
- Bridge-tunnel interface sections
- Mining railway impact load areas
- Retrofit upgrades for existing fastening systems
