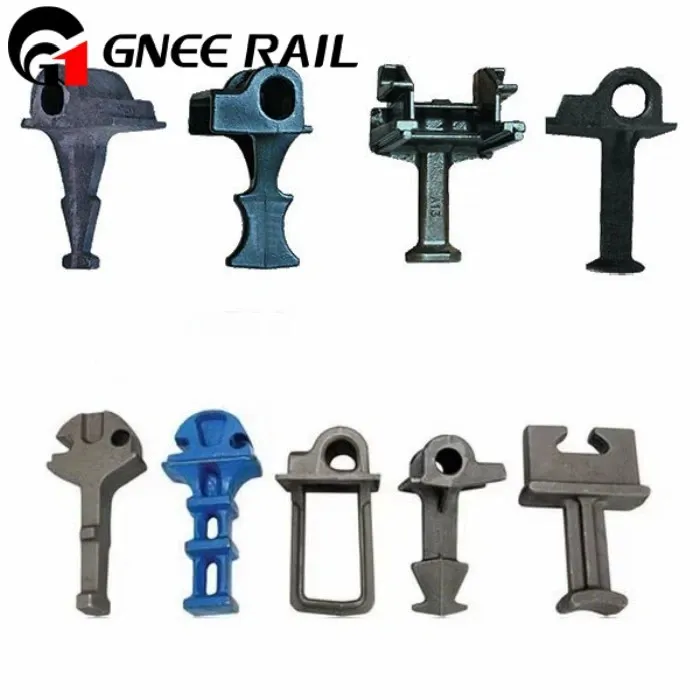

UIC 60 railroad shoulder
UIC 60 Railroad Shoulder GNEE rail manufactuired is designed with specific dimensions and geometry to meet the requirements of UIC 60 rails, ensuring a precise fit and functionality in railway systems.
We are an approved manufacturer by the Chinese Ministry of Railways. GNEE rail maintain strict quality control standards, ensuring that each rail shoulder exhibits outstanding durability and performance. If you have any needs, feel free to contact us.
Specification
| Product | UIC60 Rail shoulder |
|---|---|
| Material | |
| Name | QT450-10 |
| Standard | GB 1348-88 |
| Chemical composition(%) | C:3.40-3.90 |
| Mn:0.2-0.5 | |
| Si:2.70-3.00 | |
| P:≤0.07 | |
| S:≤0.03 | |
| Tensile Strength | ≥450 Mpa |
| Yield Strength | ≥310 Mpa |
| Elongation(%) | ≥10 |
| Hardness | 160~210HB |
| Metallographic organization | graphite + ferrite + pearlite |
| Surface | |
Railway Fastening System Application
