Rail Dog Spike Fastening System

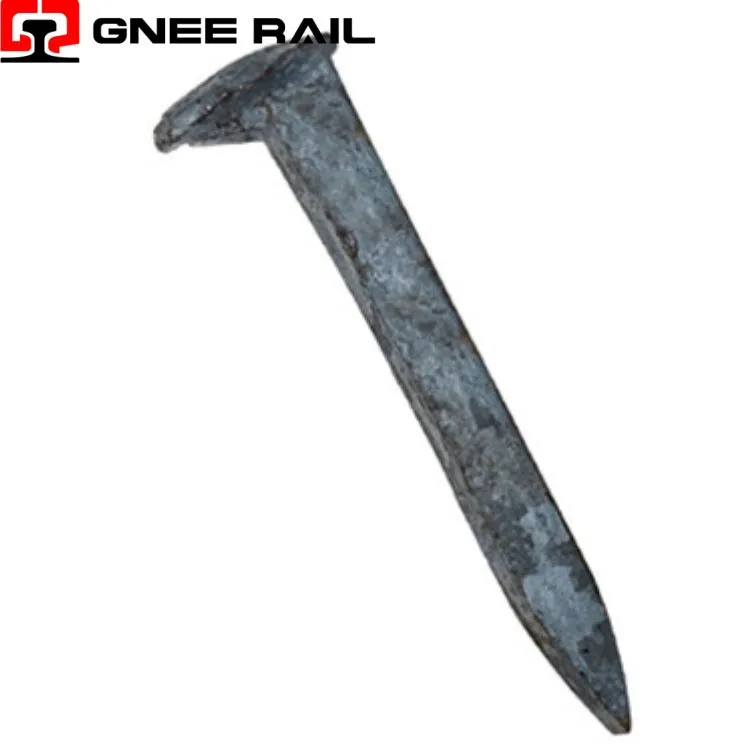

The Railway Dog Spike is a forged steel drive fastener with an L-shaped configuration, engineered for securing rail to timber crossties through mechanical displacement rather than threaded engagement. The tapered square shank compresses wood fibers radially during driving, creating sustained frictional retention. The offset head provides a striking surface while bearing against the rail base, delivering reliable performance for branch lines and industrial applications.
Technical Specifications:
| Parameter | Specification | Performance Indicator |
|---|---|---|
| Forging Method | Open-die or closed-die hot forging | Grain follows geometric contour |
| Carbon Content | Low-carbon steel range | 0.15–0.25% typical |
| Shank Section | Square or rectangular | 5/8 × 5/8 to 11/16 × 11/16 inch |
| Installation Tool | Spike maul | 8–10 pound head weight |
| Reclamation Potential | Multiple reuse cycles | 2–3 applications typical |
Installation & Maintenance Perspective:
- Hot-forging aligns grain structure with the L-shaped contour, creating uninterrupted load paths from head to tip.
- Controlled carbon content between 0.15–0.25 percent balances driving hardness with ductility for impact absorption.
- The radiused head-to-shank transition eliminates stress concentrations that would initiate fatigue cracking.
- Surface scale from hot-working provides initial corrosion protection and consistent friction characteristics.
Maintenance & Operational Perspective
- The offset head design transfers lateral rail loads directly to the shank without creating bending moments.
- Square shank geometry distributes withdrawal forces across four distinct fiber compression zones.
- The spike works in concert with tie plates to distribute rail loads across the sleeper surface.
- Head bearing against rail base provides positive lateral restraint while allowing vertical rail movement.
- Multiple spikes per rail seat share lateral loads, providing redundancy in the fastening system.
