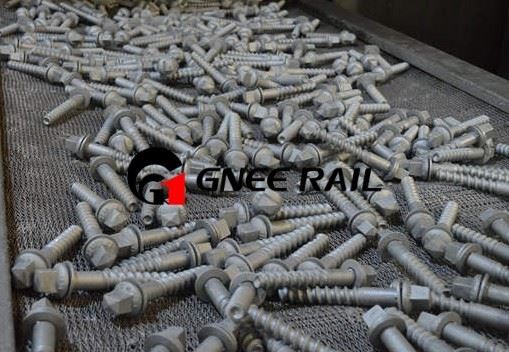

Railway Sleeper Coach Screws

Railway sleeper coach screws play a critical role in railway construction by securely fastening rails to wooden sleepers. Their design enables them to penetrate deeply into the wood, ensuring strong anchorage and long-term durability of the railway track infrastructure.

GNEE Rail is a reliable and professional supplier of railway spikes. We offer various types of sleeper coach screws, such as AS Coachscrew and M Coachscrew, all crafted from high-strength steel to ensure optimal performance and durability. And we also offer customization services. Feel free to contact us.

Model: 5 1/2 " AS coach screw

Type: railway spike, sleeper coach screws, railway sleeper coach screws

Brand: GNEE rail

Length: 5 1/2 inches (139.7mm + 3.18mm)

Diameter & Neck:

Minor Diameter: 17.46mm + 0.38mm

Major Diameter: φ 23.8mm + 0.38mm

Neck Diameter: φ 25.4mm + 0.38mm x 14.29mm

Square head & Thickness:

Top: 16.99mm A/F +0mm -0.76mm

Bottom: 28.58mm A/F +0mm -0.76mm

Overall Height: 31.75mm from top to underside of head +1.27mm

Material: BS64, GB 699-88, 45# or 35#

Tensile strength: 550-700 N/mm²

Surface treatment: Hot Dipped Galvanised (HDG)

Weight: Approx. 0.6kg

Elongation: 15%
