Description
Technical Parameters

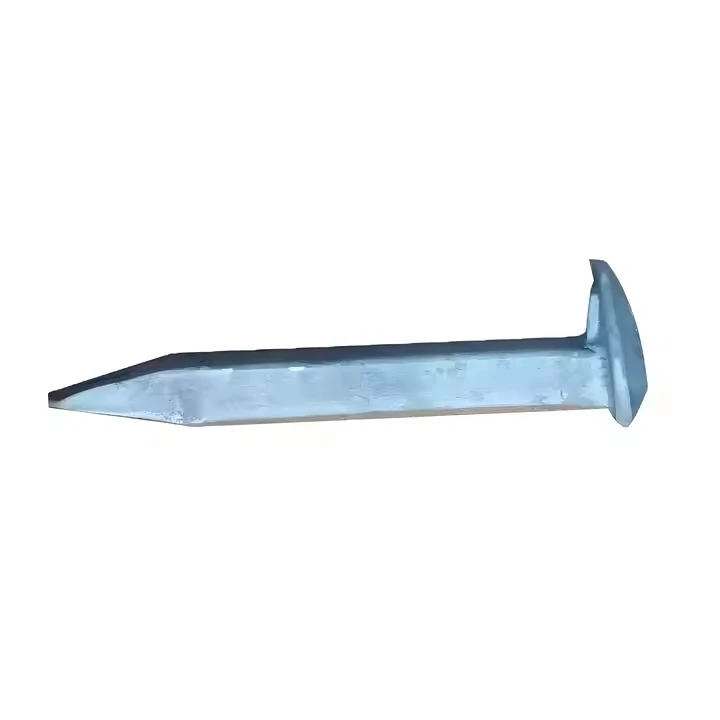

Rail Dog Spikes
| Aspect | Description |
|---|---|
| Core Function | To secure flat-bottomed railway rails to wooden sleepers (ties). |
| Mechanical Principle | The chisel-shaped, offset head is driven to hook under the edge of the rail base (foot). This creates a downward and sideways force that pulls the rail tightly against the sleeper. |
| Key Benefit | Provides a strong, simple, and cost-effective mechanical hold for fastening rails. |
| Application Context | Primarily used in traditional track construction on wooden sleepers for main lines (historically), secondary lines, branch lines, industrial sidings, and mining tracks. |
Distinction from Other Railway Fastening Systems
| Comparison Parameter | Rail Dog Spikes | Other Modern Fastening Systems (e.g., Elastic Clips / SKL Type) |
| Sleeper Type | Wooden Sleepers exclusively. | Primarily Concrete Sleepers, but also used on steel and wooden sleepers with base plates. |
| Fastening Mechanism | Mechanical Grip & Friction. Relies on the spike's deformed head and shank friction within the wood. | Elastic Clamping. Uses spring steel clips that exert a consistent, elastic downward force on the rail foot. |
| Holding Power & Stability | Lower and variable. Can loosen over time due to wood wear, vibration, and weather changes, requiring re-driving. | Superior and consistent. Maintains a constant clamping force, ensuring much higher longitudinal and lateral track stability. |
| Maintenance | High Maintenance. Requires frequent visual inspections and manual re-driving (hammering) to maintain tightness. | Low Maintenance. Virtually maintenance-free after installation due to the elastic action. |
| Impact on Sleeper | Damaging. The driving process splits wood fibers, and repeated use enlarges the hole, reducing sleeper lifespan. | Non-Damaging. Designed to be used with a shoulder or base plate, distributing pressure without damaging the sleeper. |
| Application Speed | Slower. Installation and maintenance are labor-intensive. | Faster. Often designed for quicker mechanical installation and adjustment. |
| Suitability | Low-to-Medium speed and axle load lines. Not suitable for high-speed rail. | High-Speed & Heavy-Haul lines. The standard for modern, high-performance railway networks. |
| Cost | Lower initial cost per unit, but higher lifetime cost due to maintenance and shorter sleeper life. | Higher initial cost per unit, but lower lifetime cost due to minimal maintenance and longer service life. |
