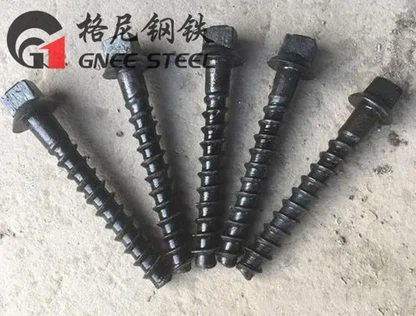

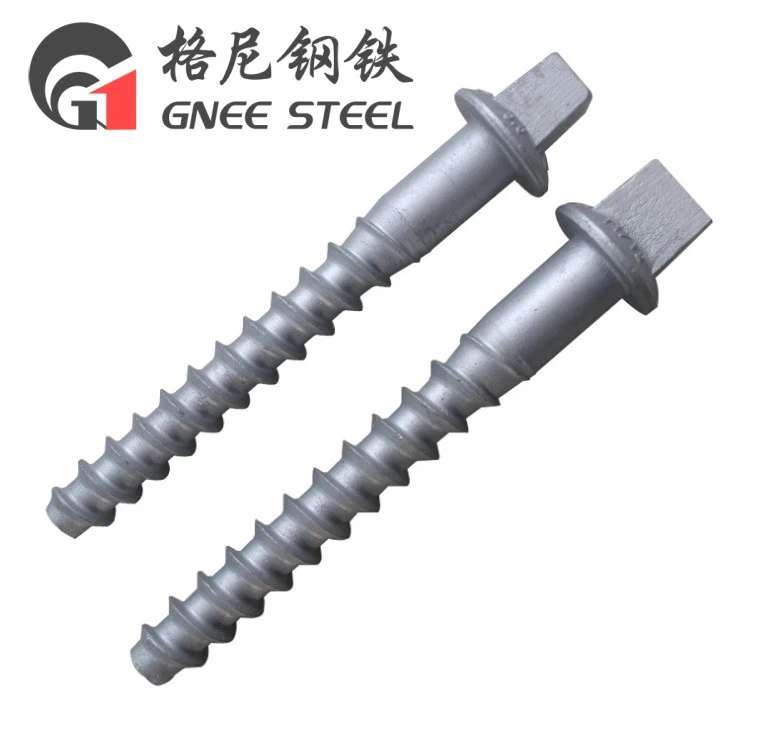

V23 Sleeper Screw Spike
The V23 Sleeper Screw Spike is an 3V type railway sleeper screw, designed to securely fasten rails to wooden or concrete sleepers, ensuring the stability and integrity of the rail track. GNEE rail is a trusted and specialist railway spike supplier, we provide extensive customization options specifically tailored to meet your project's length requirements. Whether you need standard dimensions or bespoke lengths to fit unique specifications, we are equipped to accommodate various demands. Our team ensures meticulous attention to detail and precision in adapting the product length to optimize performance and functionality for your specific application.
For further information or to discuss your customization needs in detail, please do not hesitate to contact us. We are committed to providing comprehensive solutions that align perfectly with your project goals.
V23 Sleeper Screw Spike specification
Model: V23-115, V23-135, V23-155, V23-215
Type: Sleeper Screw Spike
Brand: GNEE rail
Grade: 4.6, 5.6, 8.8
Material: Q235, 35K, 45#, etc.
Surface: Plain, Zinc, HDG, Color Painted, or according to customer needs
Application: Rail fastening system
V23 Sleeper Screw Spike technical parameters
Type Dimension(mm) Weight (Kg)
V20-135 M20×135 0.438
V23-115 M23×115 0.48
V23-135 M23×135 0.55
V23-155 M23×155 0.62
V23-215 M23×215 0.78
V26-115 M26×115 0.55
V23 Sleeper Screw Spike application
