Rail Screw Spike Fastening System

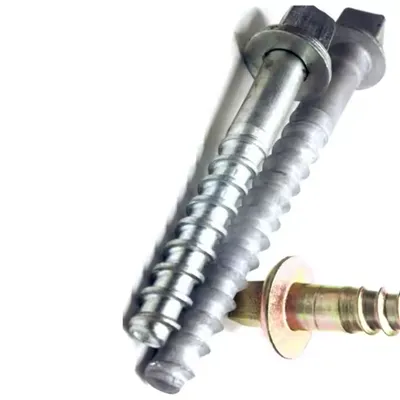

The Railway Screw Spike is a precision-engineered threaded fastener designed to secure rails and baseplates to wooden sleepers or concrete sleeper inserts through positive mechanical engagement of helical threads with the host material . Manufactured from high-strength carbon steel and low-alloy grades including 35#, 45#, 40Mn2, and 20MnSi, these spikes achieve mechanical properties ranging from Grade 4.6 (tensile ≥400 MPa) to Grade 8.8 (tensile ≥800 MPa) with corresponding yield strengths of 240–640 MPa .
Technical Specifications:
| Thread Type | Standard | Diameter Range | Pitch | Flank Angle | Thread Form | Primary Application | Regional Preference |
|---|---|---|---|---|---|---|---|
| Metric Coarse | ISO 261 | M20–M26 | 2.5–3.0mm | 60° | V-Thread | General Purpose Wood Sleepers | Europe, Asia |
| Metric Fine | ISO 261 | M22–M24 | 1.5–2.0mm | 60° | V-Thread | Hardwood/Hard Timbers | Central Europe |
| Whitworth | BS 84 | 7/8"–1" | 9–10 TPI | 55° | Round-Crested | Heritage Railways | UK, Commonwealth |
| Unified Coarse | ASME B1.1 | 3/4"–7/8" | 10–9 TPI | 60° | V-Thread | US Railroads | North America |
| Round Thread | NF F50-014 | M23–M26 | 4–5mm | 45° | Rounded Crest | French Railways | France, Africa |
| Acme Thread | ASME/ISO | M24 | 5mm | 29° | Trapezoidal | Concrete Inserts | Heavy Haul |
| Buttress Thread | Custom | M24 | 6mm | 3°/30° | Saw-Tooth | High Pull-Out Applications | Mining Railways |
Installation & Maintenance Perspective:
- Material Displacement Mechanism: Unlike cutting threads that remove material, screw spike threads displace wood fibers radially outward during installation, creating compressed fiber zones that exert continuous radial pressure on the thread flanks .
- Load Angle Optimization: Thread flank angles of 60° (metric) or 55° (Whitworth) are optimized to convert axial pull-out forces into compressive stresses on wood fibers rather than shear stresses that would cause fiber failure .
- Dual-Axis Load Response: The thread helix provides different resistance mechanisms in vertical (pull-out) versus lateral (thrust) directions, with vertical capacity typically 2–3 times higher than lateral due to thread orientation relative to load direction .
Maintenance & Operational Perspective
- Torque-Angle Monitoring: Premium installation systems measure both torque and rotation angle simultaneously, generating real-time torque-angle curves that detect thread stripping, bottoming out, or timber anomalies during installation .
- Extraction Tooling: Reverse-rotation hydraulic extractors apply controlled torque (typically 200–500 Nm) to remove spikes without thread damage, though removal torque typically measures 60–80% of installation torque due to wood fiber relaxation .
- Automated Track Laying Machines: High-output construction trains equipped with multi-spindle hydraulic drivers install 8–16 screw spikes simultaneously at rates exceeding 100 sleepers per hour during greenfield construction .
