Description
Technical Parameters
Product Definition

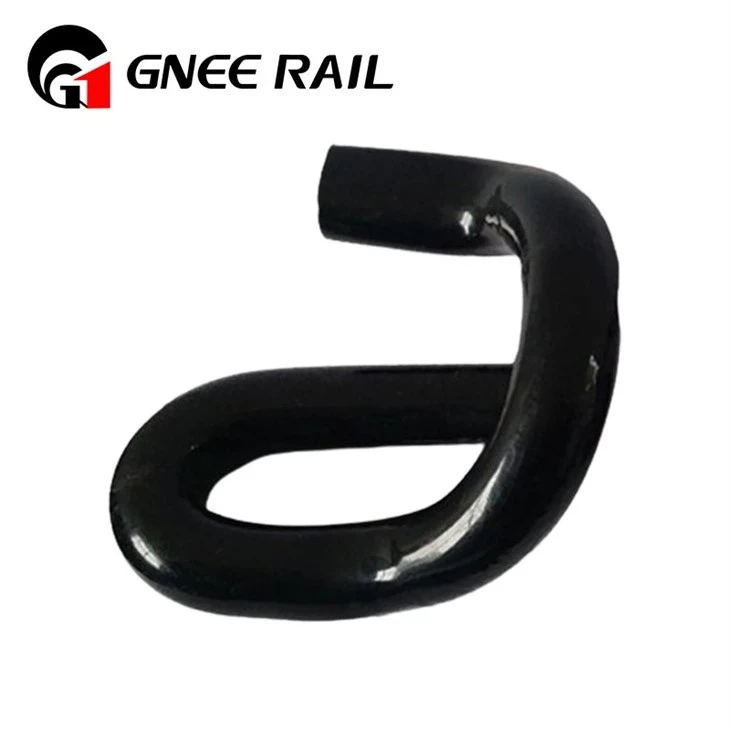

Type: Heavy-duty elastic rail fastening clip
Application: High-speed rail (300-350km/h) and heavy-axle load tracks (≥25t)
Key Standards
| Standard | Region | Key Requirement |
|---|---|---|
| TB/T 3395.2 | China | HSR compliance |
| EN 13481-5 | EU | Fatigue testing |
| UIC 864 | International | Corrosion resistance |
Dimensional Parameters
| Parameter | Value | Tolerance |
|---|---|---|
| Total length | 200mm | ±0.7mm |
| Wire diameter | 14mm | ±0.2mm |
| Installation height | 28mm | ±0.5mm |
| Clamping jaw width | 95mm | ±0.5mm |
GNEE RAILWAY-professional supplier
