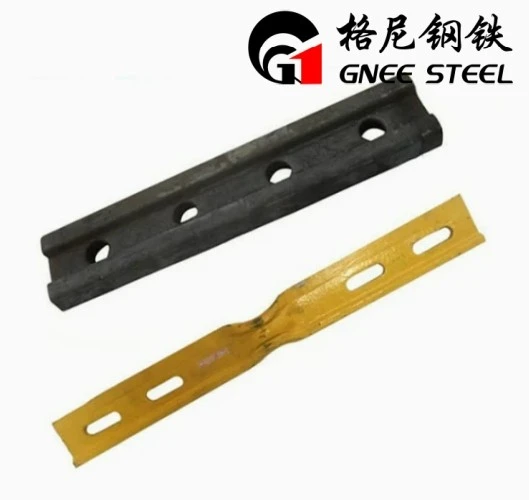

BS 60R Railway Joint Bar
The BS 60R Railway Joint Bar, also referred to as a fishplate, splice bar, rail connector, or angle bar, is an essential component used to connect rail sections that conform to the BS 60R rail profile. This joint bar plays a vital role in ensuring the alignment and stability of the railway track, allowing for smooth transitions between rail segments. By reinforcing the connections between rails, it enhances the overall structural integrity and safety of the railway system, ensuring reliable train operations and minimizing wear at the rail joints. GNEE Rail, we produce a comprehensive range of railway fishplates adhering to BS standards, such as BS50 "0", BS75R, B575A, and BS100A. We can customize fishplates to meet your specific project requirements. For further details, don't hesitate to contact us.
BS 60R Railway Joint Bar specification
Specifications: BS 60R Railway Joint Bar
Length of 4-bolt fishplate (mm): 406.4
Length of 6-bolt fishplate (mm): 609.6
Diameter of bolt holes in fish plates (mm): 20.64
Calculated weight per pair (4 hole) (kg): 8.75
Calculated weight per pair (6 hole) (kg): 13.14
BS 60R Railway Joint Bar workshop
