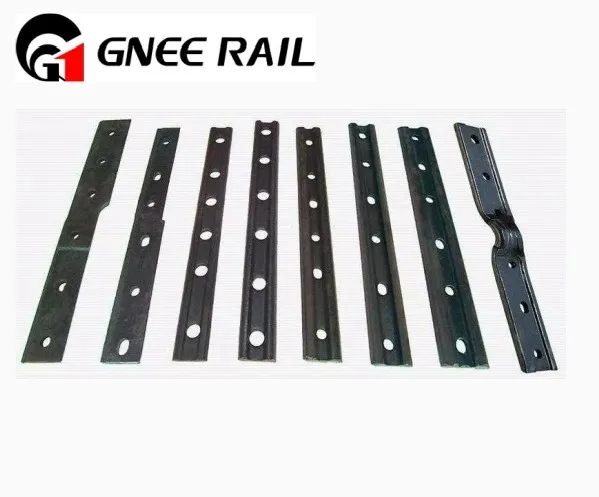

BS 75A Rail Joint Bar
The BS 75A Rail Joint Bar is a type of rail joint bar, also known as a fishplate or splice bar, specifically designed for BS 75A rail sections following British Standards. With over 20 years in the industry, GNEE Rail is a trusted producer of all varieties of rail fishplates. The company offers a one-stop manufacturing and supply solution, delivering standard and custom fishplates to railways across the globe. If you have any needs, feel free to contact us.
BS 75A Rail Joint Bar specification
Specifications: BS 75A Railway Joint Bar
Brand: GNEE rail
Customization: Available
Standard: BS
Length of 4-bolt fishplate (mm): 406.4
Length of 6-bolt fishplate (mm): 609.6
Diameter of bolt holes in fish plates (mm): 23.81
Calculated weight per pair (4 hole) (kg): 11.82
Calculated weight per pair (6 hole) (kg): 17.73
BS 75A Rail Joint Bar technical parameters
| Fishplate for UIC Standard Steel Rail | |||
| Steel Rail Type | Steel Rail Weight (KG/M) | Fishplate Standard | Fishplate Material |
| UIC54 | 54.43 | UIC | 45#,55# |
| UIC60 | 60.34 | ||
| Fishplate for BS Standard Steel Rail | |||
| BS50'O' | 24.833 | BS 47-1 | 55#,45# European Grade 700 |
| BS60A | 30.618 | ||
| BS75R | 37.041 | ||
| BS80A | 39.761 | ||
| BS90A | 45.099 | ||
| BS100A | 50.182 | ||
| BS113A | 56.398 | ||
BS 75A Rail Joint Bar workshop
