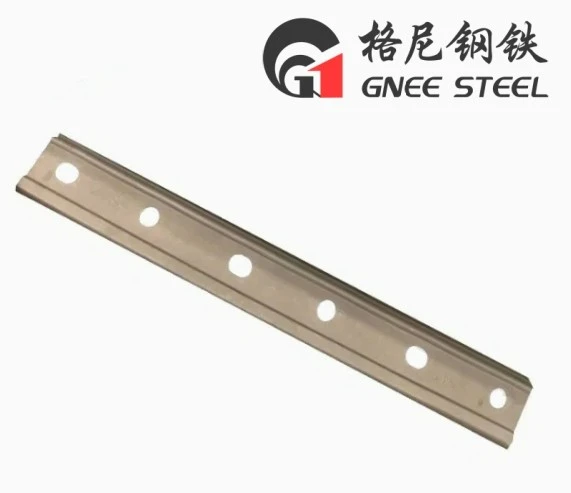

GB 15KG Railway Fish Plate
The GB 15KG railway fish plate, also known as a joint bar or splice bar, is a critical component in railway track systems, specifically designed to connect two sections of rail in accordance with Chinese National Standards (GB). The "15KG" designation indicates that the rail weighs 15 kilograms per meter, making it suitable for various rail applications. GNEE Rail is a trusted supplier in the railway industry, offering fishplates and rail joints compliant with standards like American (AREMA), German (DIN), British (BS), European (EN), and Japanese (JIS). Our products are fully customizable to meet your unique specifications. Contact us today!
GB 15KG Railway Fish Plate specification
| Product | Chinese Standard Rail Fishplate(Joint Bar) | ||||
| Standard | TB/T2345-2008 | ||||
| Size | 15KG | ||||
| Raw Material | Chinese steel grade 55# | ||||
| C | Mn | Si | S | P | |
| 0.52-0.60 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | |
| Tensile strength | Rm≥785 MPa | ||||
| Yield strength | ReL / Rr0.2≥520 MPa | ||||
| Elongation | A≥9% | ||||
| Reduction of Area | Z≥20% | ||||
| Brinell Hardness | HBW10 / 3000: HBW 227-388 | ||||
| Cold Bend | d=3a: 30 degree, no crack | ||||
| Surface | Plain, Oxide Black, or other upon requirements | ||||
| Package | Pallet | ||||
| Delivery | Depends on order | ||||
GB 15KG Railway Fish Plate for sale
| Fishplate For Chinese Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
GB 15KG Railway Fish Plate workshop
