UIC Standard Railway Fishplate

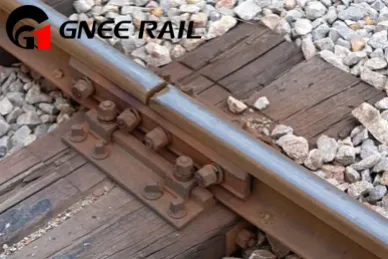

The UIC Standard Railway Fishplate is a crucial component in railway track systems, adhering to the standards set by the International Union of Railways (UIC). The Railway Fishplate, also known as a rail joint or splice bar, plays a vital role in connecting and joining two rail pieces, ensuring the seamless and continuous operation of the railway track.
GNEE is a trustworthy manufacturer of railway products, specializing in top-quality railway fasteners, including diverse types of fish plates designed for light rail, heavy rail, and crane rails. We offer customization to meet specific customer needs, therefore, we can produce all types of rail fish plates you need. Feel free to contact us for more information.
Technical Parameters
| Product | UIC Standard Rail Fishplate(Joint Bar) | ||||
| Size | U79 - UIC54, U85 - UIC60 | ||||
| Raw Material | Chinese steel grade 40# | ||||
| C | Mn | Si | S | P | |
| 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | |
| Tensile strength | Rm: 550-650 MPa | ||||
| Elongation | A ≥18% | ||||
| Surface | Plain, Oxide Black, or other upon requirements | ||||
UIC Standard Railway Fishplate Types
| Standard | Type | Length/Diameter | Weight(kg) |
| UIC864-4 & UIC864-8 | UIC60 | 4 hole - 630/ ￠ 26 | 18.07kg |
| UIC60 | 4 hole-600/ ￠ 28 | 17.47kg | |
| UIC60 | 4 hole - 630/ ￠ 25 | 18.1kg | |
| UIC54 | 4hole | 14.34kg | |
| UIC54 | 6hole- 800 | 19.94kg |
Drawing
UIC54 And UIC60 Railway Fish Plate
Railway Fish Plates Supplier
