36KG Heavy Railway Track
GNEE 36KG Heavy Rail is a type of steel rail designed for heavy-duty railway applications. The "36KG" designation indicates its weight per meter, which is approximately 36 kilograms.
GNEE Rail is a professional manufacturer of railway products, offering a diverse range of steel rails, including light rail, heavy rail, and crane rail. We are committed to providing high-quality rail solutions for various applications. If you have specific requirements or need customized products, please don't hesitate to get in touch with us.
Specification
Designation: 36KG Heavy Rail
Mass kg/m: 36.542
Width of the pad: 115(mm)
Height of rail: 128(mm)
Width of the foot: 58.2(mm)
Thickness of the web: 13(mm)
Dimension
|
type |
weight (kg/m) |
material |
length (m) |
|
36kg |
36.59 |
Q235/55Q |
6-12m |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thinkness (mm) |
|
128 |
115 |
60 |
13 |

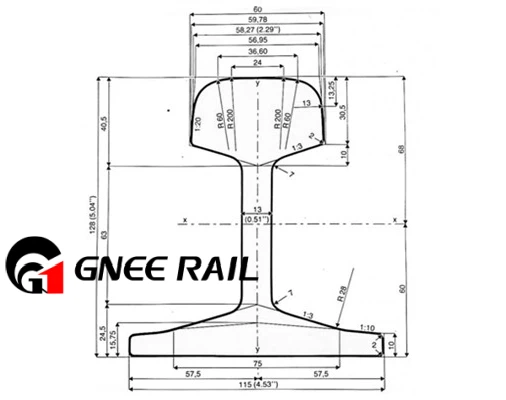

Drawing
