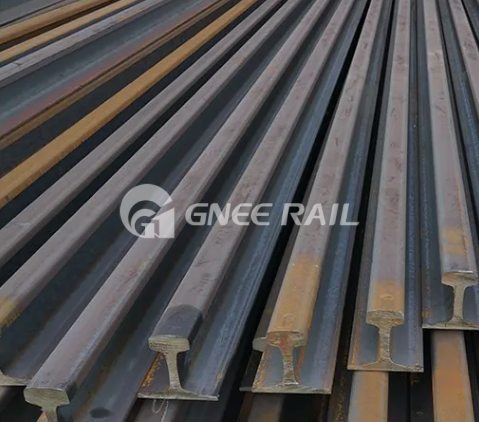

CR104 steel Rail
CR104 Rail is manufactured in adherence to specifications and requirements established by American Railway Engineering and Maintenance-of-Way Association (AREMA).
GNEE rail is a professional steel rails manufacturer, offering a range of American standard crane rail, including CR104, CR105, CR135, CR171. Meanwhile, we specialize in manufacturing rails according to various standards, including European, Indian, American, Japanese, and Chinese standards.
Therefore, we can manufacture all types of rails you need. And we can customize according to customer needs. If you have specific needs, feel free to contact us.
CR104 Rail Drawing
CR104 Rail Specification
| RAIL | 104 lb. CR |
| Area | 66, 39 cm2 10.29 in.2 |
| Kg/ m Lbs/yd | 51, 59 kg/m 104.0 lbs/yd |
| Mom. Inertia | 1242 cm4 29.84 in.4 |
| Mom. Inertia Y-Y | 356 cm4 8.56 in.4 |
| Sec. Mod. Head | 175, 2 cm3 10.69 in.3 |
| Sec. Mod | 56, 2 cm3 3.43 in.3 |
CR104 Rail Dimension
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) |
| CR104 | 63.5 | 127 | 127 | 25.7 | 104 |
| CR105 | 65.1 | 131.8 | 131.8 | 23.8 | 105 |
| CR135 | 86.5 | 146.1 | 131.8 | 31.7 | 135 |
| CR171 | 109.1 | 152.4 | 152.4 | 31.7 | 171 |
| CR175 | 107.9 | 152.4 | 152.4 | 38.1 | 175 |
Steel Rails Supplier
