Products Description
Industrial Railway Track 30kg is relatively simple but well designed. It consists mainly of three parts: the rail head, the rail waist, and the rail bottom, each of which is connected in a scientific manner to form a whole. The rail head is in direct contact with the wheels and withstands the rolling pressure of the wheels. The rail waist connects the rail head to the rail bottom and has some bending strength. The rail bottom is fixed to the roadbed to provide stable support for the entire track. As an important transportation infrastructure, the use of steel rails can promote the development of the national economy and urban and rural transportation, which is of strategic significance to the development of the country.
Material： Q235/55Q
Weight：30.10Kg/m
Length：6-10m
Standard：GB11264-2012

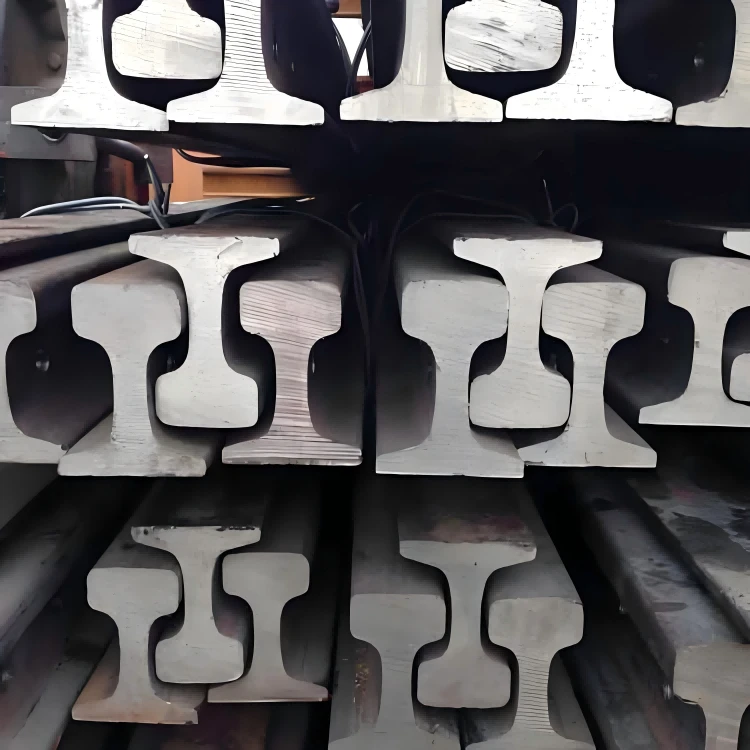

30kg Light Steel Rail
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 30kg | 30.10 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 107.95 | 107.95 | 60.33 | 12.3 |
Product Picture Display
Advantages
The installation and maintenance of mining steel rails are crucial for ensuring the safety and stability of work transportation. During the installation process, the installation of lightweight steel rails should be strictly carried out in accordance with national standards and operating procedures to ensure the straightness and stability of the rails. During use, regular inspections and maintenance of train rails should be carried out to promptly identify and address issues, thereby extending the service life of the rails.
When selecting mining steel rails, factors such as the weight of electric locomotives and mining cars, the speed of the train, and the density of the train should be mainly considered. The larger the vehicle's load capacity, the faster the speed, and the higher the driving density, the larger the type of steel rail used. In addition, suitable rail materials and sizes should be selected based on the actual situation and transportation needs of the mine.
GB Light Steel Rails
| Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 8kg | 65 | 54 | 25 | 7 | 8.42 |
| 9kg | 63.5 | 63.5 | 32.1 | 5.9 | 8.94 |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 |
| 18kg | 90 | 80 | 40 | 10 | 18.06 |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
About Us
GNEE (Tianjin) Multinational Trade Co., Ltd.
We have been engaged in import and export trade of train tracks for 18 years. We focus on providing high-quality steel rail products under intermediate standards, providing professional services and reliable rail supply chains to partners around the world to meet the diverse needs of global customers for steel rails.
