Products Description
12 kg rails are a light rail suitable for light-loaded and low-speed railway lines, and are often used in mining railways, industrial railways and other occasions. Its main advantages are light weight, low cost, easy construction and maintenance, and suitable for railway systems with small traffic volume or short distances. However, due to its low load-bearing capacity, it cannot meet the requirements of heavy-load and high-speed railways. In modern railway construction, 12 kg rails are more often used in specific environments, while heavier rails (such as 43 kg or 50 kg rails) are generally used in trunk railways and high-speed railways.
Compared with other rails, 12 kg rails have the following characteristics in terms of load-bearing capacity and scope of application:
12 kg rails are usually used in low-speed, light-load railway systems. Compared with heavier rails (such as 43 kg and 50 kg rails), it has a lower load-bearing capacity and a narrower scope of application.
12 kg rails are mostly used in short-distance railways such as mining railways and industrial railways, or some temporary and light track construction.

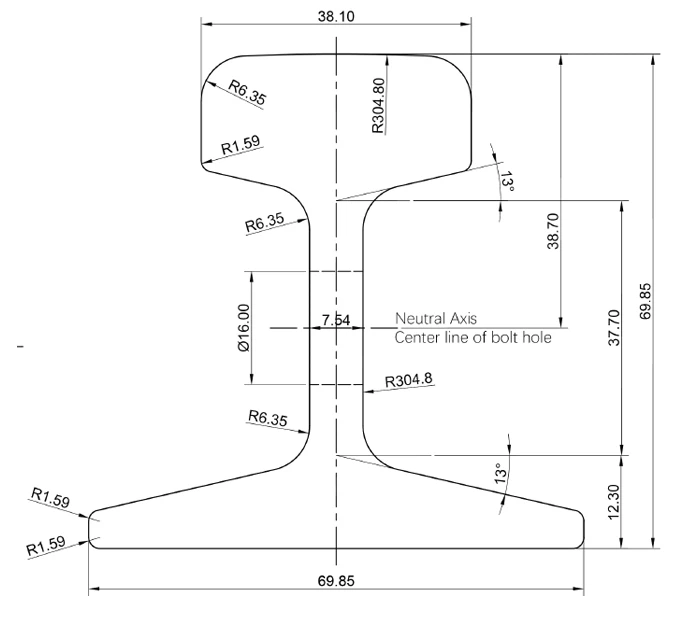

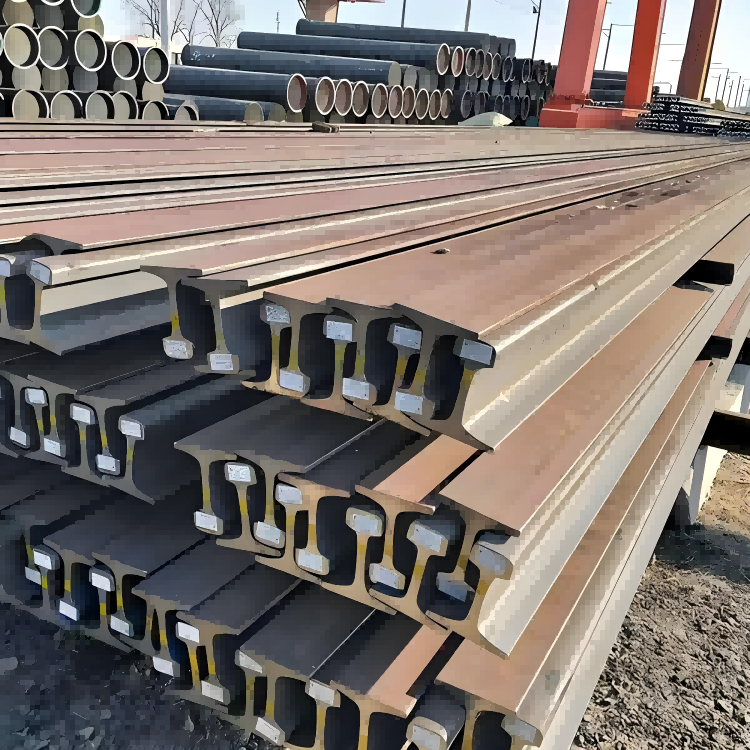

12kg Light Steel Rail
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 12Kg | 12.20 | Q235 | 6m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 69.85 | 69.85 | 38.1 | 7.54 |
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
About Us
GNEE (Tianjin) Multinational Trade Co., Ltd.
We have a strong team of more than 200 elites, with rich industry experience and professional knowledge gathered here. From market research, product procurement to logistics distribution and after-sales service of rails, every link is strictly controlled by professionals to ensure that we provide customers with the best quality and most comprehensive solutions.
FAQ
Q: How to choose the length and weight of the rail?
A: The standard length is 12.5 meters or 25 meters. The weight of a single rail varies according to the model (such as P43, P50), and the weight of a single rail is about 480kg-600kg. It can be customized according to transportation and laying requirements.
Q: What is the hardness range of the rail?
A: The surface hardness is usually 280-320HB, ensuring wear resistance while taking into account toughness to avoid brittle fracture.
Q: Does it support non-standard customization (such as special length, hole position)?
A: The length, drilling position and quantity can be customized. Detailed drawings are required, and the minimum order quantity needs to be negotiated (usually ≥500 tons).
Q: What is the quality inspection standard for rails?
A: Implement the ISO 9001 quality system, and provide material reports, ultrasonic flaw detection reports and third-party certification (such as TÜV, SGS) for each batch.
