Products Description
8kg light rail is a type of rail suitable for light rail, urban rail transit systems, and some special railway lines, with a unit weight of 8 kilograms per meter. Due to their light weight, 8kg steel rails are commonly used in track systems with light loads and low traffic flow, which can meet railway projects with low load and low-speed requirements.
8kg light rail refers to a weight of 8 kilograms per meter of rail, which is very light compared to other light rail rails (such as 18kg, 22kg, etc.).8kg steel rails typically use high-strength alloy steel that has undergone special treatment to enhance their strength, toughness, and wear resistance. Even if the weight is light, the material needs to be durable enough to ensure that the steel rail can withstand the pressure of daily use.
Like other steel rails, the size of 8kg steel rails meets the corresponding national or industry standards and usually has a certain cross-sectional shape, such as U-shaped, flat, etc., to provide sufficient support and stability.

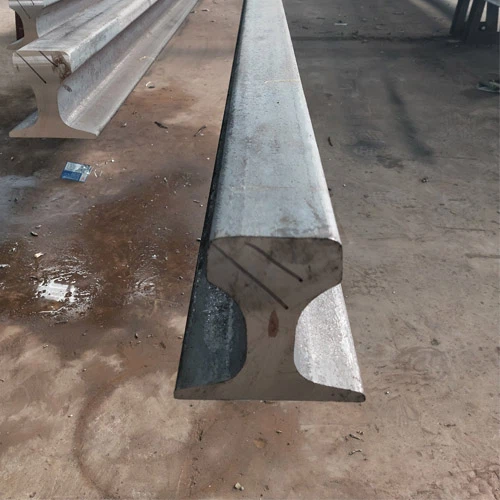

8kg Light Stee Rail
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 8Kg | 8.42 | Q235/55Q | 6m |

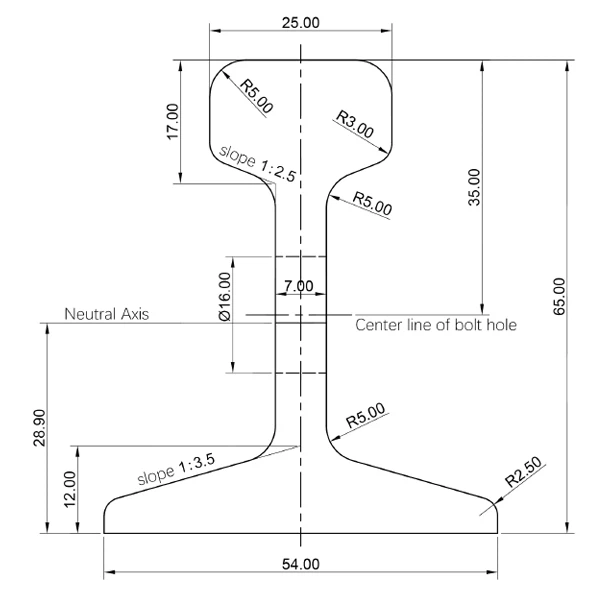

| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 65 | 54 | 25 |
7 |
Other Features
Application scenarios
1.Light rail and tram:
8kg steel rails are mainly used in rail transit systems such as light rail, tram, and tram, which are usually part of urban transportation and mainly meet the transportation needs of low-speed and low load.
2.Industrial railways:
Some industrial railways or factory railways also use 8kg steel rails, which usually transport less goods, are frequently used, and have lighter loads.
3.Rural or mountainous small-scale railways:
In some remote or mountainous small-scale railways, 8kg steel rails are also a common choice. Due to the low transportation demand in these areas, 8kg steel rails are suitable for low-speed and short distance transportation.
Temporary or light construction lines: In some temporary railway constructions, 8kg steel rails are often used to save costs and time.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 |
